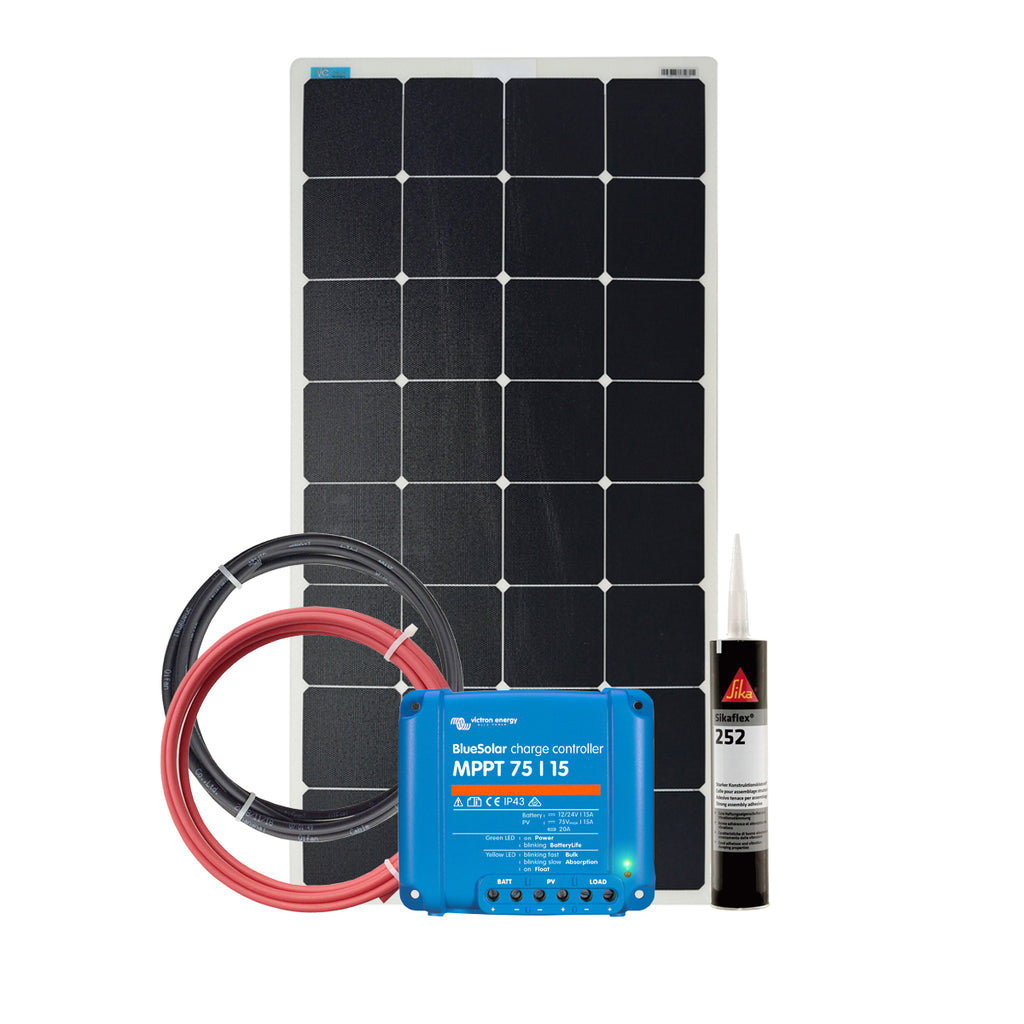

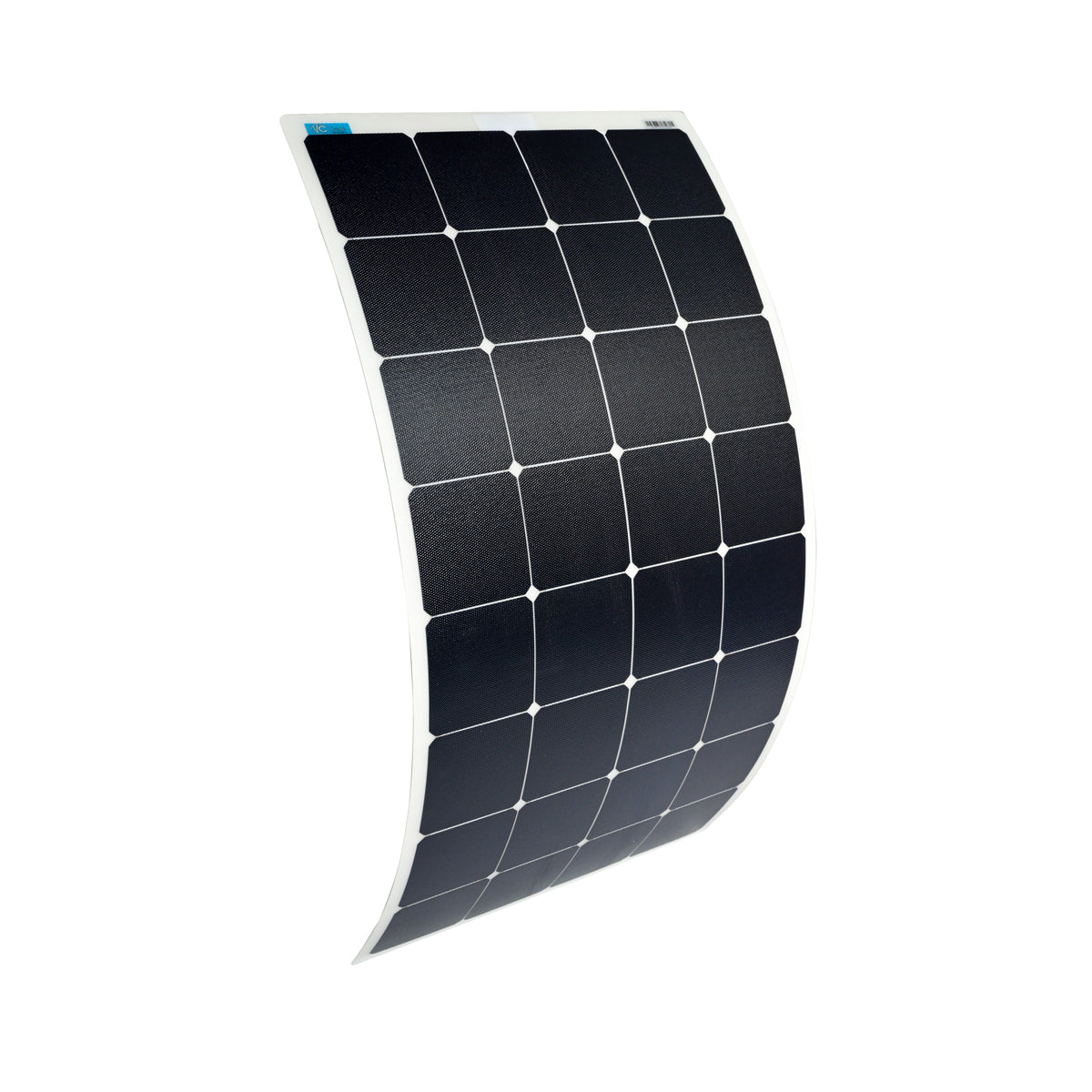

120 Watt Flush Solar Panel

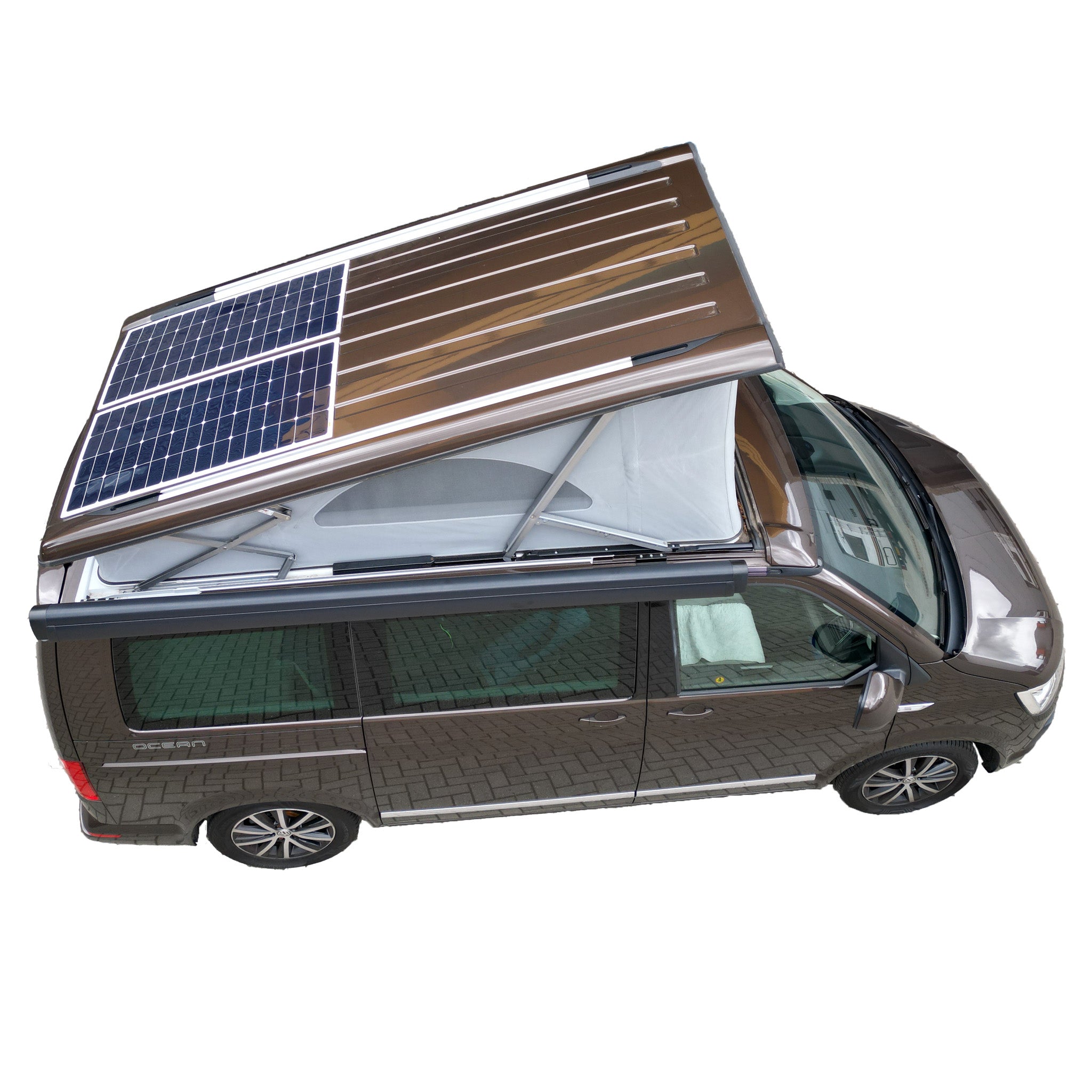

This kit comes with a flexible 120 Watt peak flush panel. Flush means that the cable is located on the underside, so no roof penetration is required as the cable enters your roof beneath the panel. The panels are ultra-light and do not add any load to your pop-top roof. All solar panels are equipped with ultra-fast diodes, allowing them to be connected in both series and parallel, preventing hotspots, and ensuring good output even in shaded conditions.

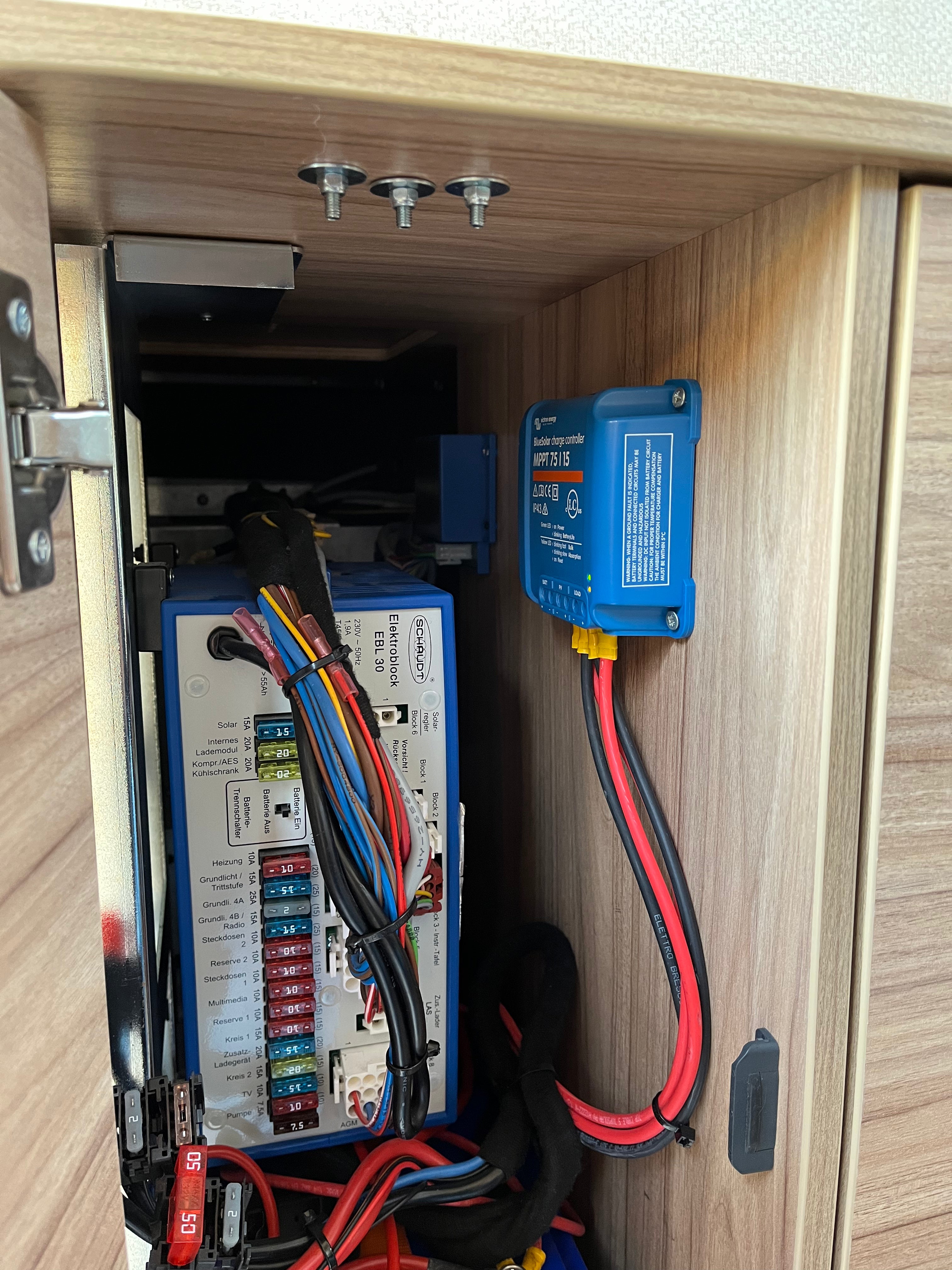

Charge Controller

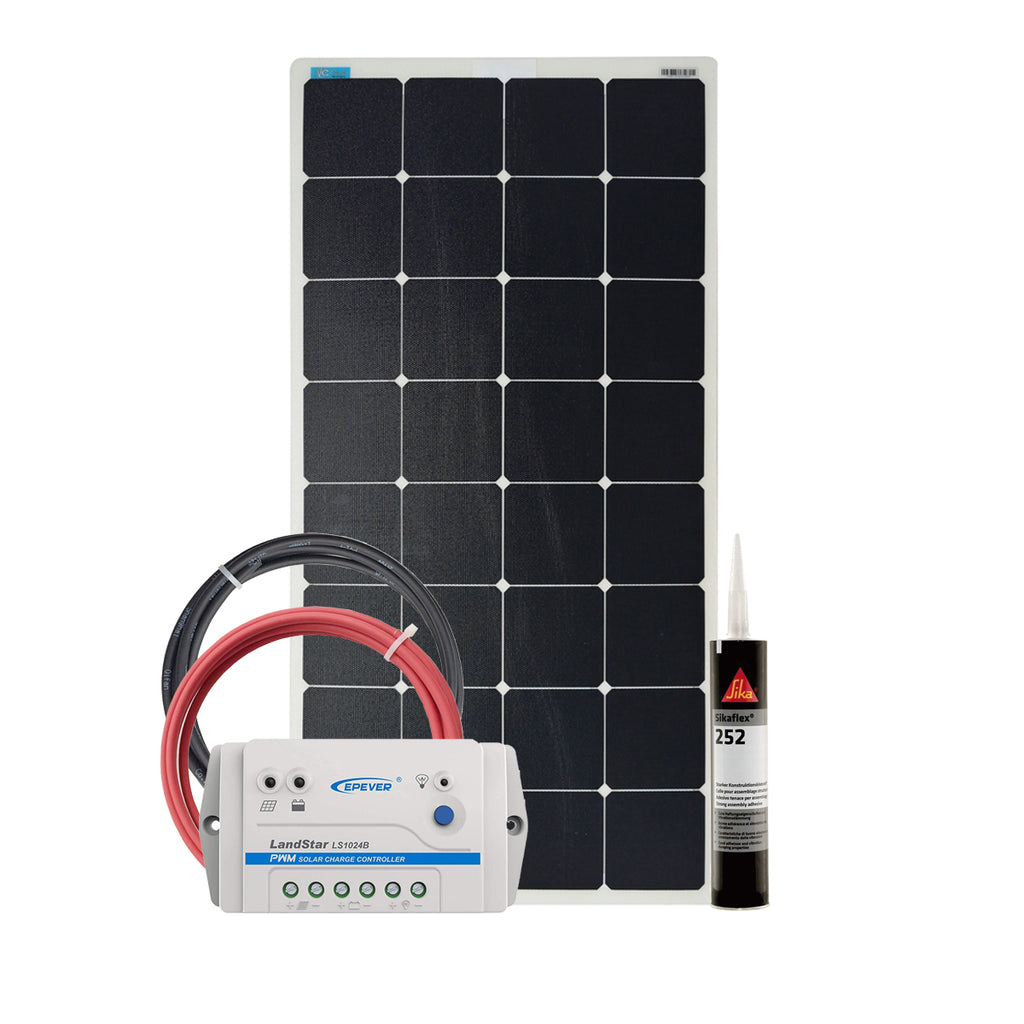

With this kit, you can choose between a PWM charge controller or a Victron MPPT charge controller. PWM controllers are known for their quality, simplicity, and excellent electrical performance. An MPPT controller continuously searches for the maximum power point, which is the point where the panel delivers the most current. In favorable conditions, this results in 10 to 30% more energy compared to conventional PWM controllers. This MPPT controller can transfer 220 Watts of solar energy to the battery, which means a second panel can be connected. If you want to use a second panel, always choose the MPPT controller; you won't need anything else for this expansion.

Cable and Mounting Kit

To complete the kit, we supply 5 meters of red and 5 meters of black solar cable, for use between the panel and the controller and which can also be used between the controller and the battery. A tube of Zettex MS 25 adhesive for mounting the panel, which ensures a longer lifespan for the flexible solar panel by providing a flexible connection between the solar panel and the camper roof.
