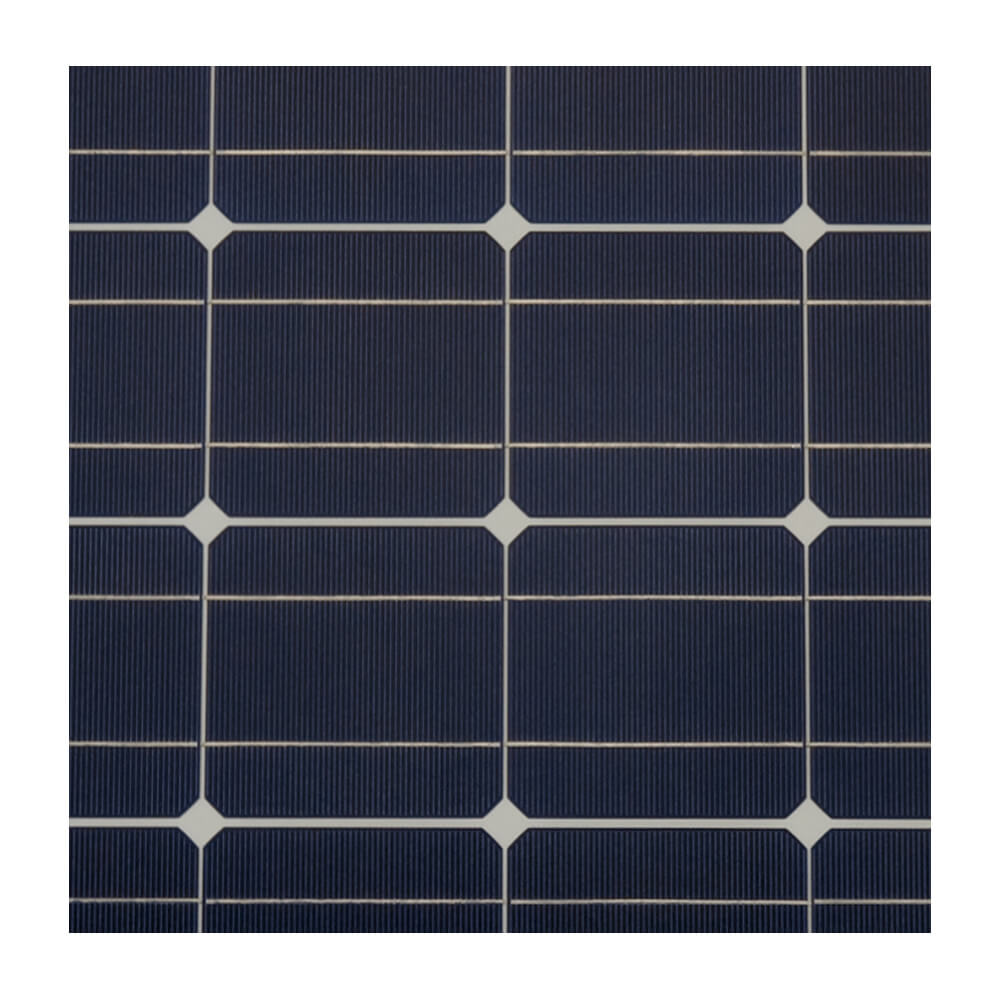

Solar panel 175W Monocrystalline - Victron Energy

Product information

Product features

• Low voltage-temperature coefficient improves high temperature performance.
• Exceptional low-light performance and high light sensitivity across the entire solar spectrum.
• 25-year limited warranty on power and performance.
• 5 year limited warranty on materials and workmanship.
• Sealed, waterproof, multi-functional junction box ensures a high degree of safety.
• High-performance bypass diodes minimize current drop caused by shading.
• Advanced EVA (ethylene vinyl acetate) encapsulation system with three-layer backsheet meets the most stringent safety requirements for high-voltage operation.
• A sturdy, anodized aluminum frame allows modules to be easily mounted to the roof using a variety of standard mounting systems.
• Highest quality high transmission tempered glass provides enhanced rigidity and impact resistance.
• Powerful models with pre-wired quick-connect system with solar connectors.

Product specifications

Dimensions: 1485x668x30mm
Weight: 11.0Kg
Cell type: Monocrystalline
Number of cells: 72 cells
Max wattage (Pmax): 175 Watt
Max voltage (Vmpp): 19.4 volts
Max current (Imp): 9.03 Ampere
No-load voltage: 23.7 Volts
Short circuit current: 9.89 Ampere
Max system voltage: 1000 Volt (IEC)
Operating temperature: -40°C to +85°C
Power guarantee: 10 years 90% + 25 years 80%
Warranty: 5 years
