Product informatie
The Victron Energy Battery Combiner Kit Cyrix-i 12/24-120 is a bi-directional voltage-sensitive relay. It is therefore used to charge an auxiliary battery.
Intelligent battery monitoring
The Cyrix software does more than just switch on and off with a fixed delay based on the battery voltage. The Cyrix 'looks' at the general trend (voltage increase or decrease) and only reverses a previous switch if the trend has reversed for a certain period. The time delay then depends on the voltage deviation from the trend.
Parallel emergency function
An emergency start button can be connected to the "start assist" terminal if required. The relay switches on for 30 seconds after the "start assist" is temporarily connected to the battery's positive terminal. Alternatively, a parallel connection switch can be used to switch on the relay as long as the switch remains closed.
Easy to install
There is no need to cut wires that could void any factory warranty on your boat or vehicle.

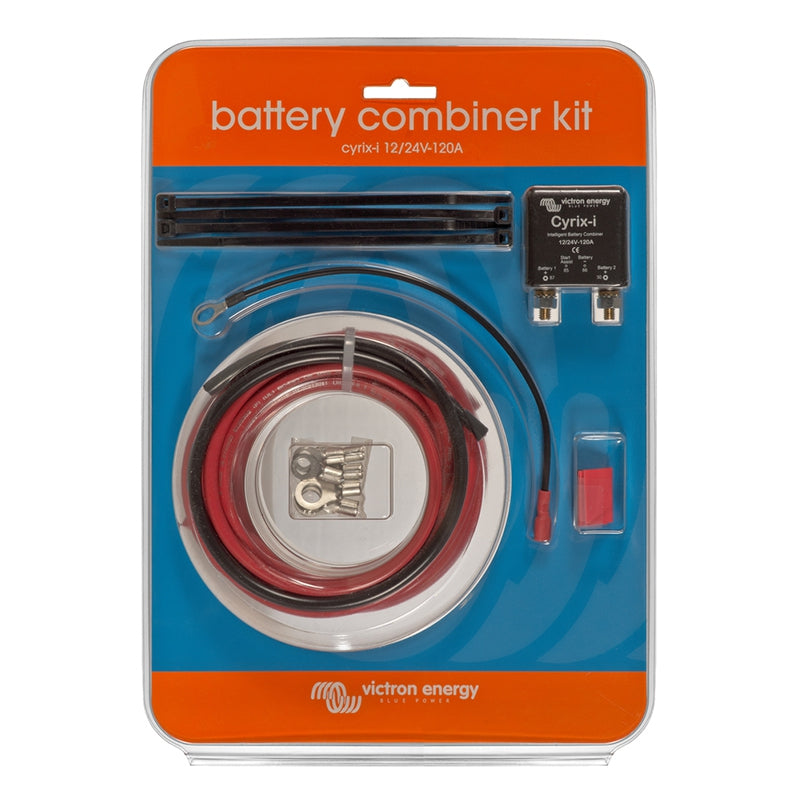

Wiring and terminals included
- 6m red wire 10mm2
- 0.5m black wire 10mm2
- 0.2m black wire 1.5mm2 with an M8 lug on one end and a 6.3mm spade terminal on the other
- 2 M8 insulated cable lugs
- 4 M6 insulated cable lugs
- 4 150mm cable ties
