Product informatie

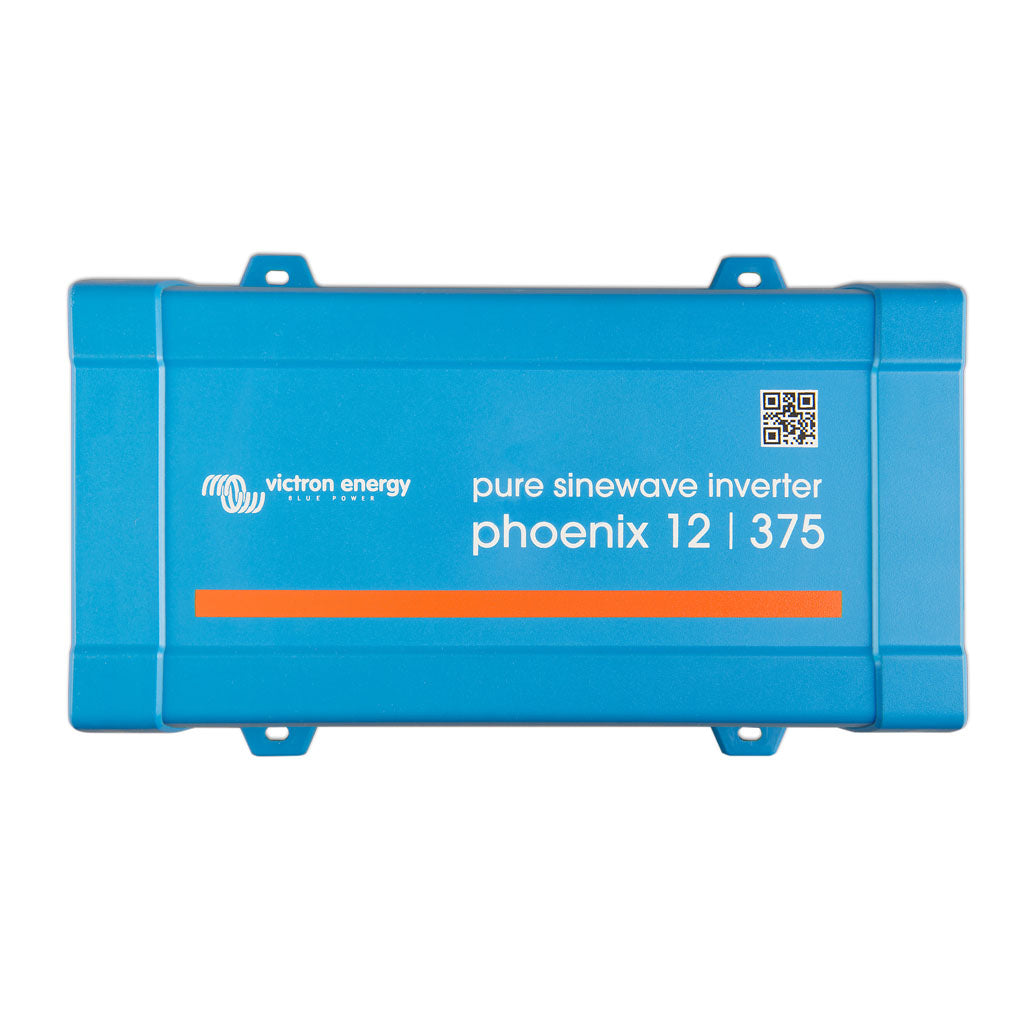

Proven reliability. The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short-circuit proof and protected against overheating, regardless of whether this is caused by overload or a high ambient temperature.
High start-up power
Required to start loads such as power inverters for LED lamps, halogen lamps or power tools
ECO mode
In ECO mode, the inverter switches to standby if the load drops below a preset value (min load: 15W). Once in standby, the inverter is switched on for a short time (adjustable, standard every 2.5 seconds). If the load exceeds a preset level, the inverter remains switched on.

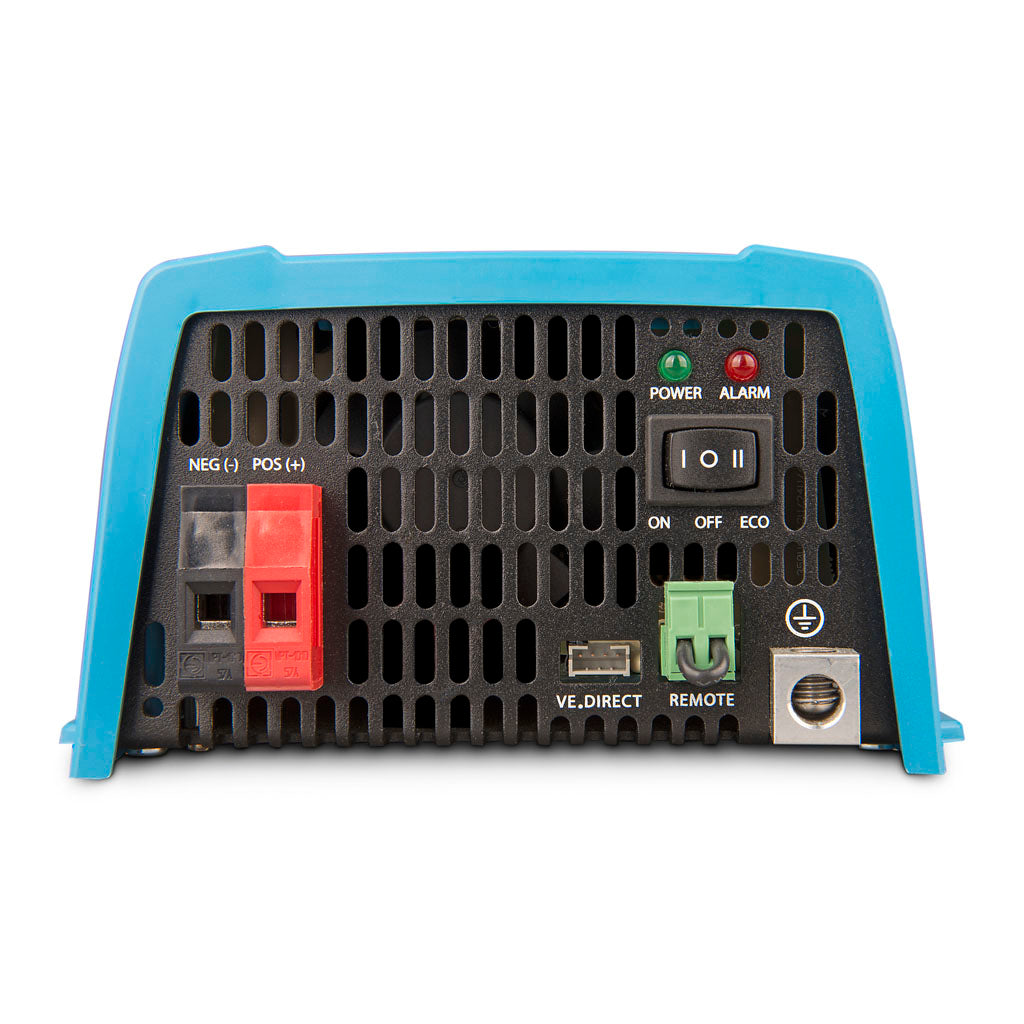

Remote on/off
A remote on/off switch can be connected to a two-pole plug or between the positive terminal of the battery and the left contact of the two-pole plug.
Screw terminals
No special tools required for installation.
Cable set and socket

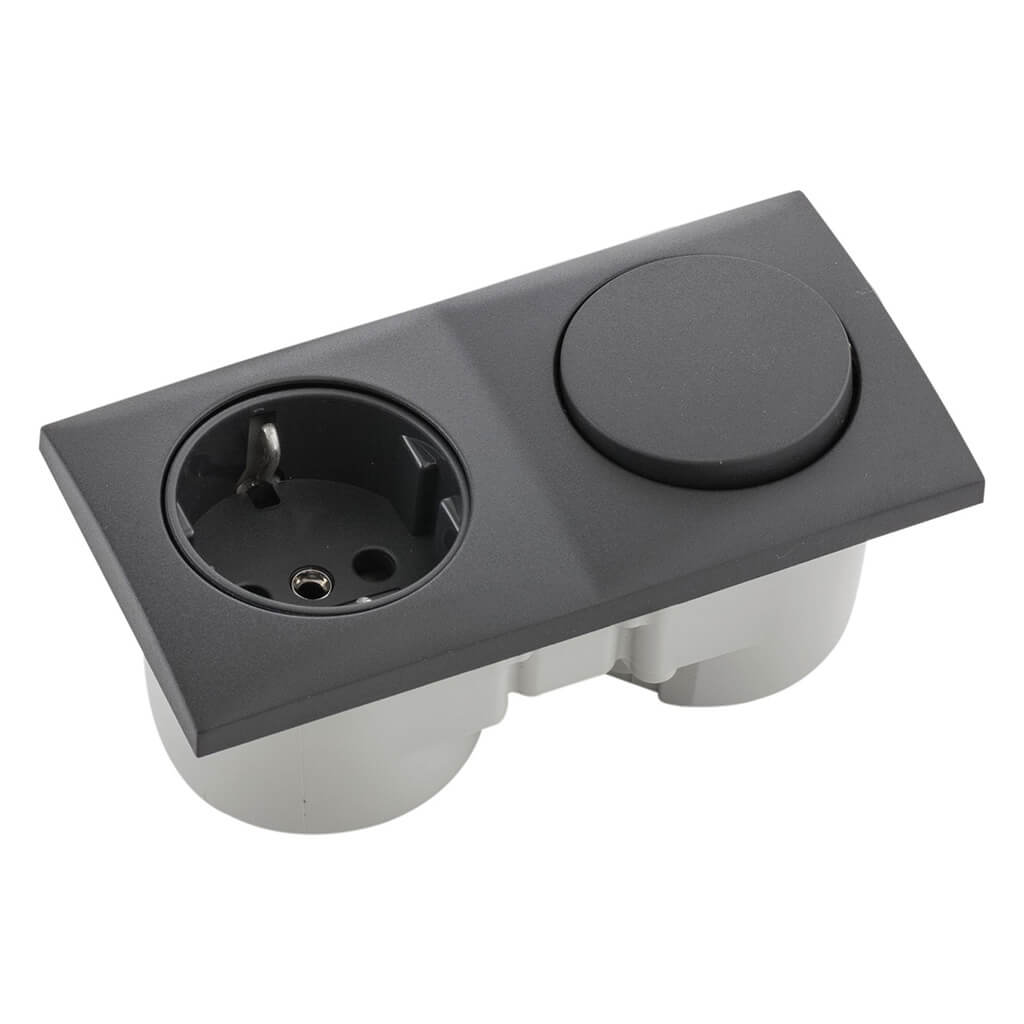

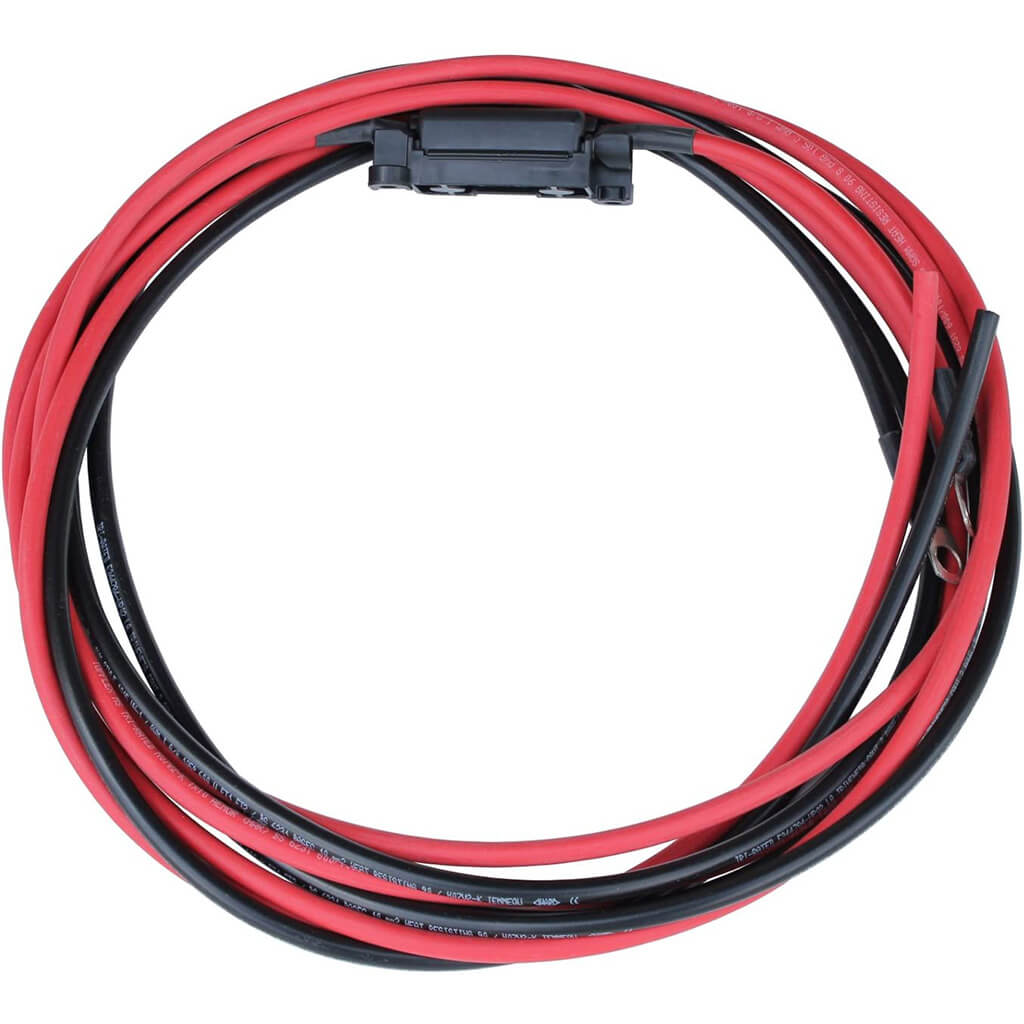

The set is available with a matching 1.5-meter cable set with fuse holder, fuse and M8 cable lugs to connect directly to your battery. If you want to install the inverter under a seat or in a cabinet, we have put together a set with a socket and switch that allows you to switch the inverter on and off remotely. This set consists of a socket, changeover switch, mounting frame and comes with a 1.5-meter cable with a 230-volt plug that goes directly into the inverter.
VE.Direct communication port
The VE.Direct port can be connected to:
- a computer (VE.Direct to USB interface cable required)
- Apple and Android smartphones, tablets, Macbooks and other devices ('VE.Direct Bluetooth Smart dongle' required)
Fully configurable:
- Switch and reset levels alarm for low battery voltage
- Shutdown and restart levels alarm for low battery voltage
- Dynamic cut-off: cut-off level depending on load
- Output voltage 210 - 245V
- Frequency 50 Hz or 60 Hz
- ECO mode on/off and ECO mode detection level
Monitoring:
- Input and output voltage, % load and alarms
