Product informatie
Omschrijving

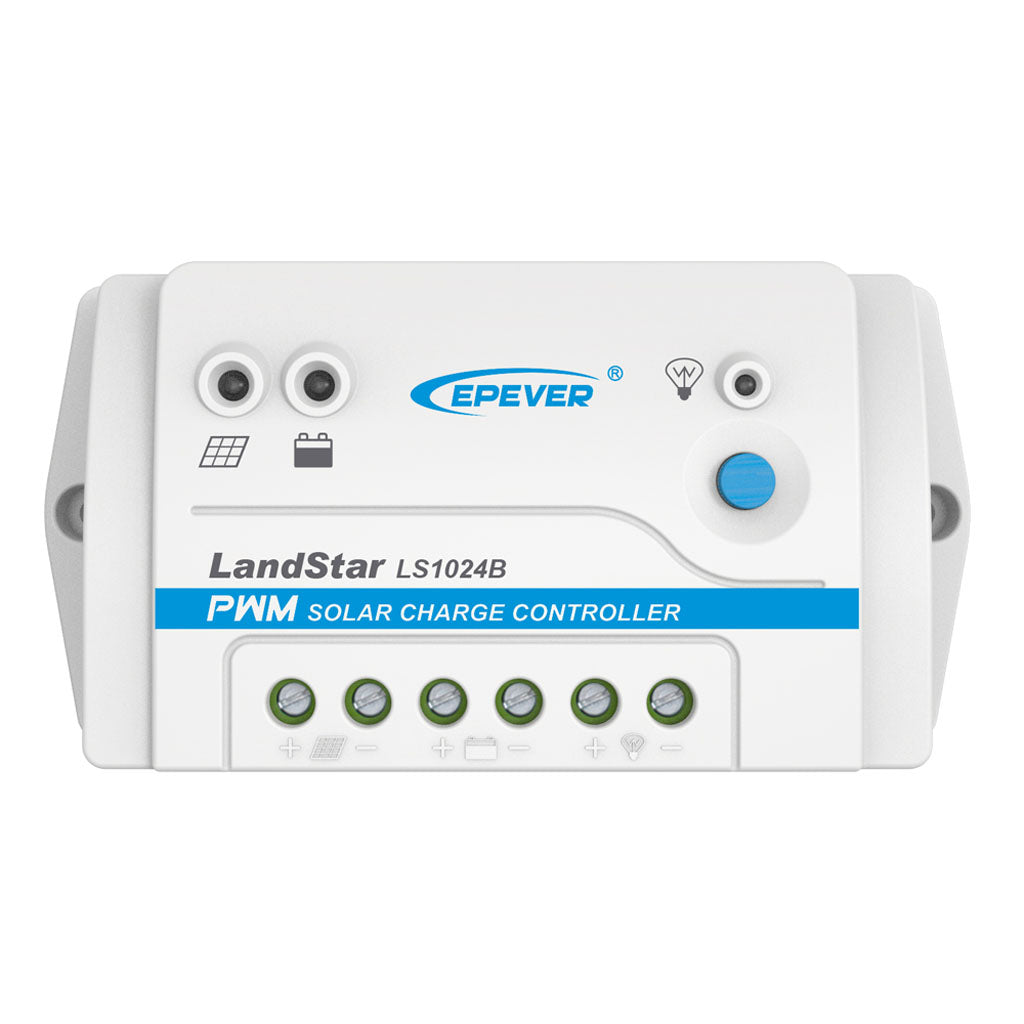

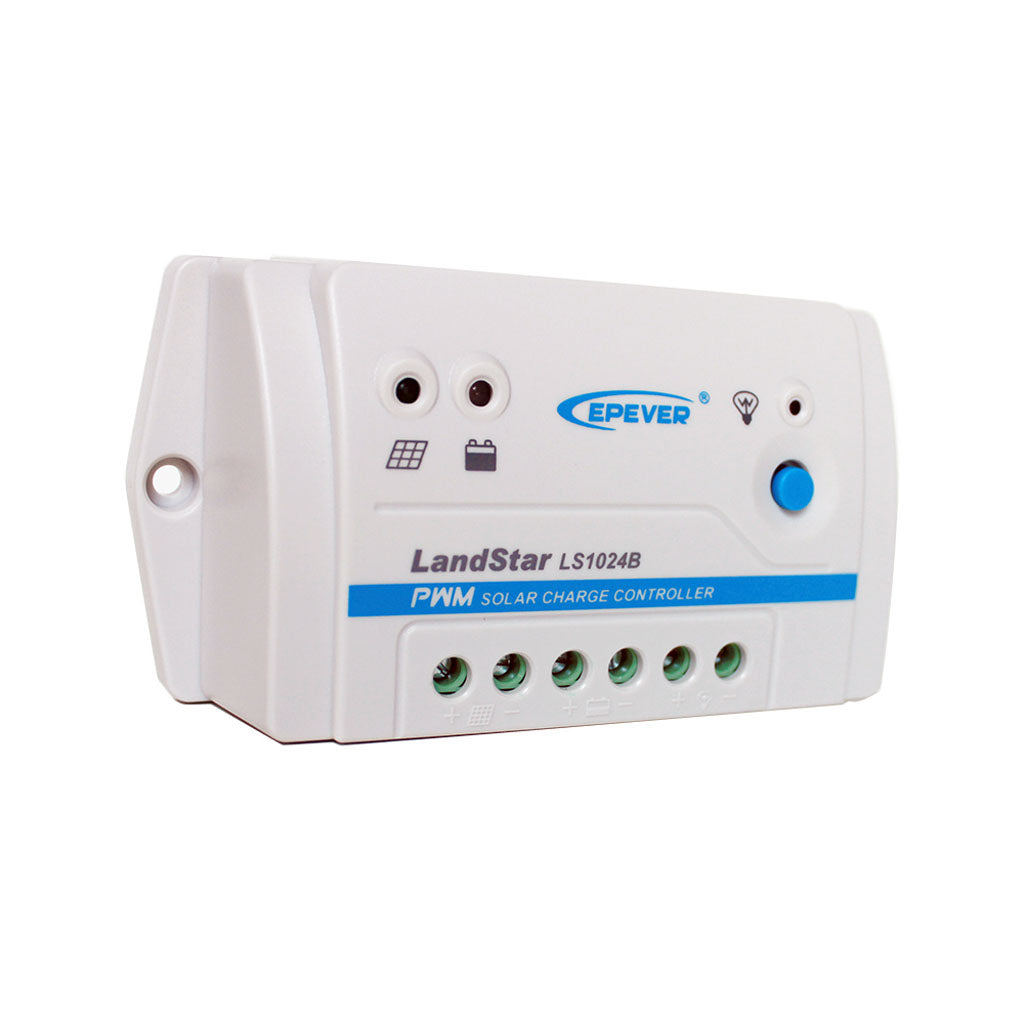

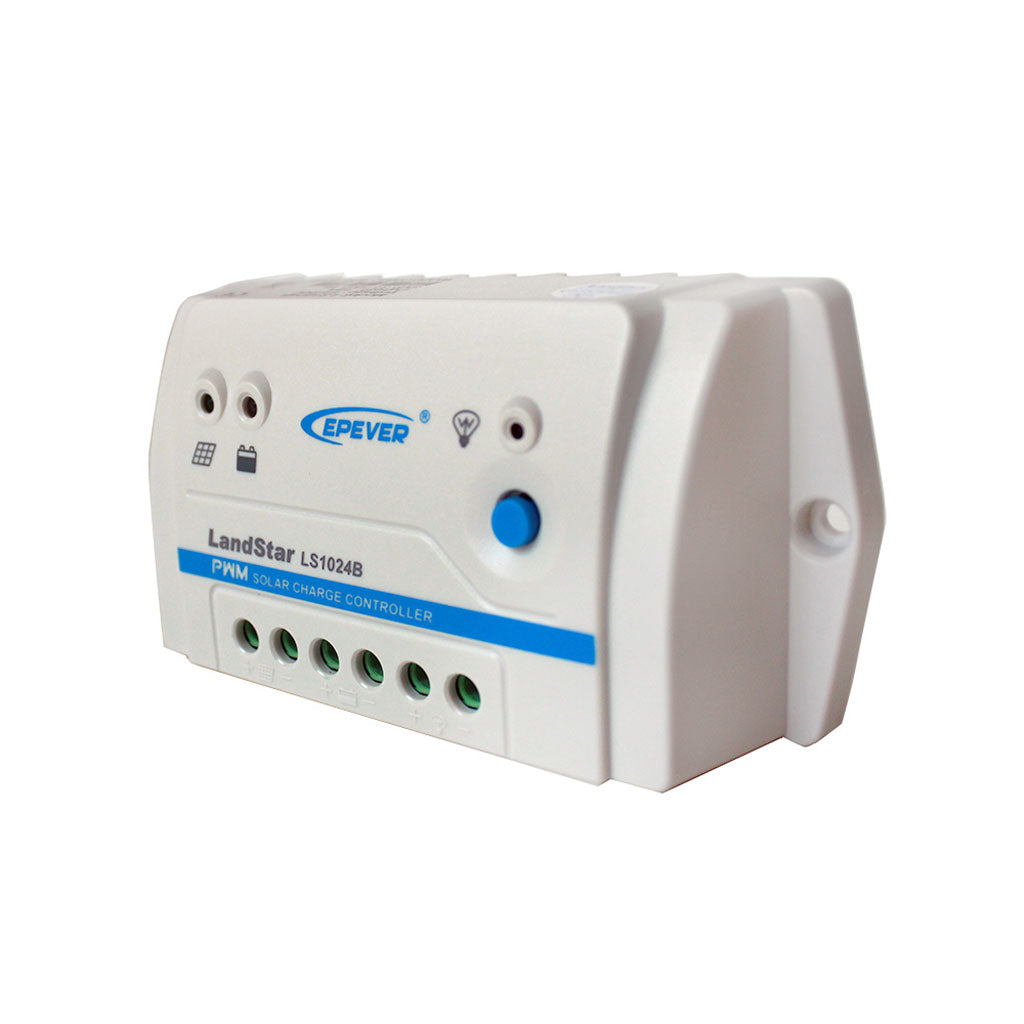

- Low-cost PWM controller.
- Internal temperature sensor.
- Three-stage battery charging (bulk, absorption, float).
- Protected against overcurrent.
- Protected against short-circuit.
- Protected against reverse polarity connection of the solar panels and/or battery.
- With low load voltage disconnect output.

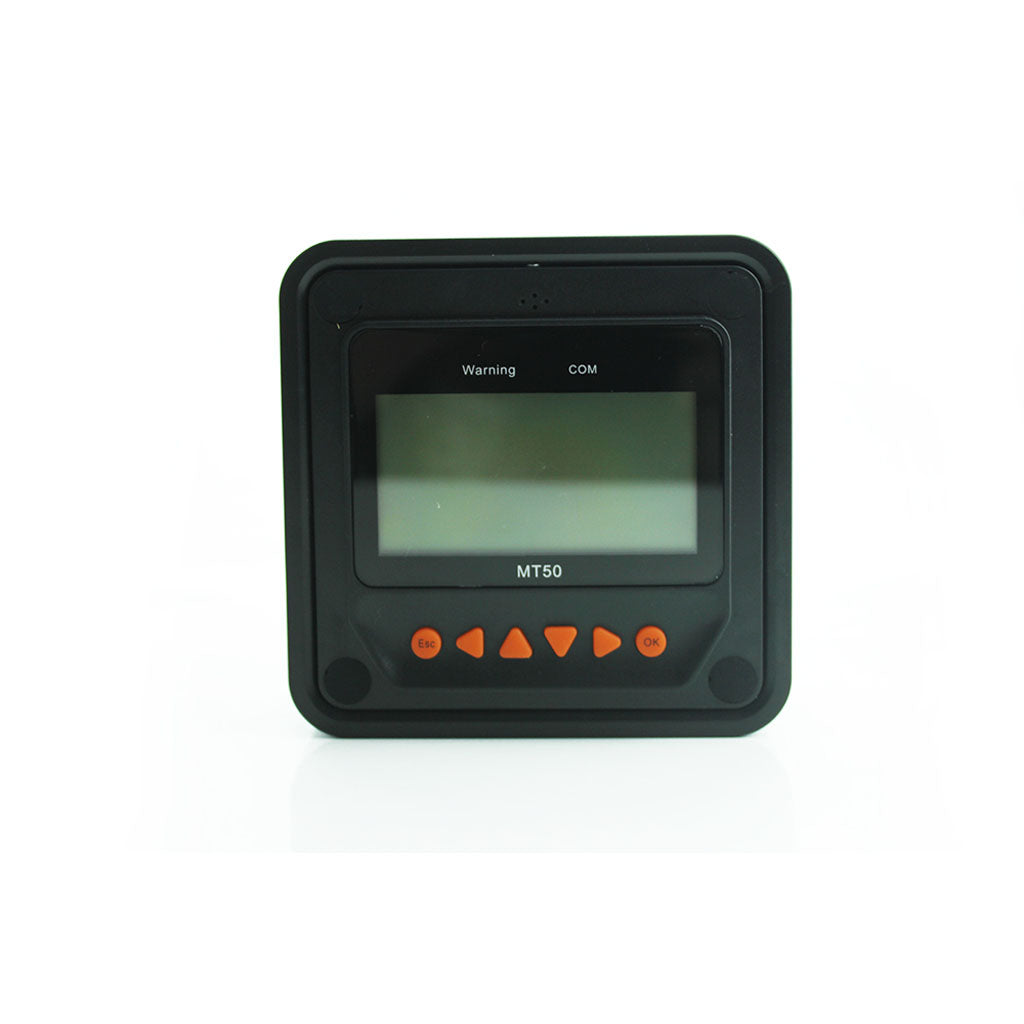

- Optional remote display (20A model only).
- Automatic recognition of 12/24V battery voltage.
Specificaties
Systeemvoltage
12/24 Volt
Nominale laadstroom
10A
Nominale pv vermogen
12V/120W, 24V/240W
Maximale PV-nullast-spanning
28V/55V
Communicatie
RS458
Afmetingen
139x69x37mm
Gewicht
0,13kg
Bedrijfstemperatuur
-35 tot +50°C
Garantie
2 jaar
