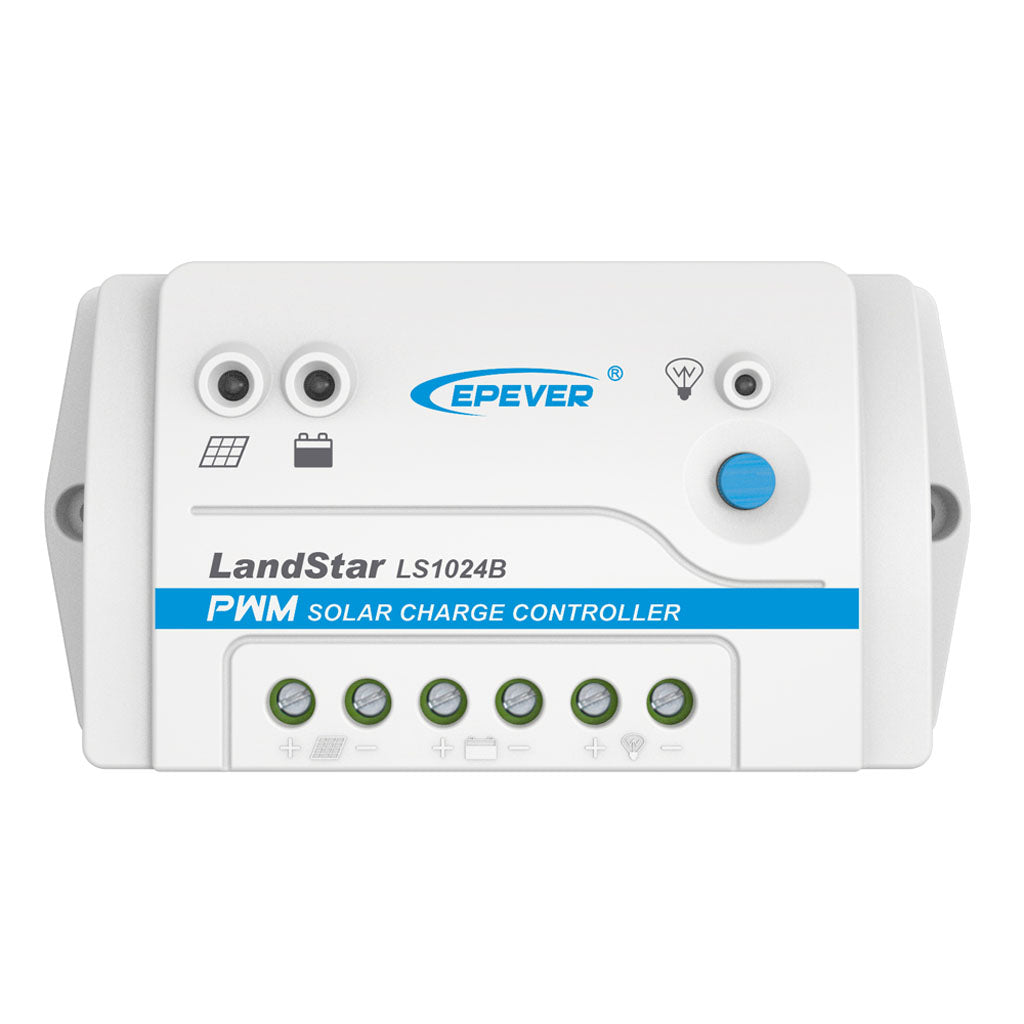

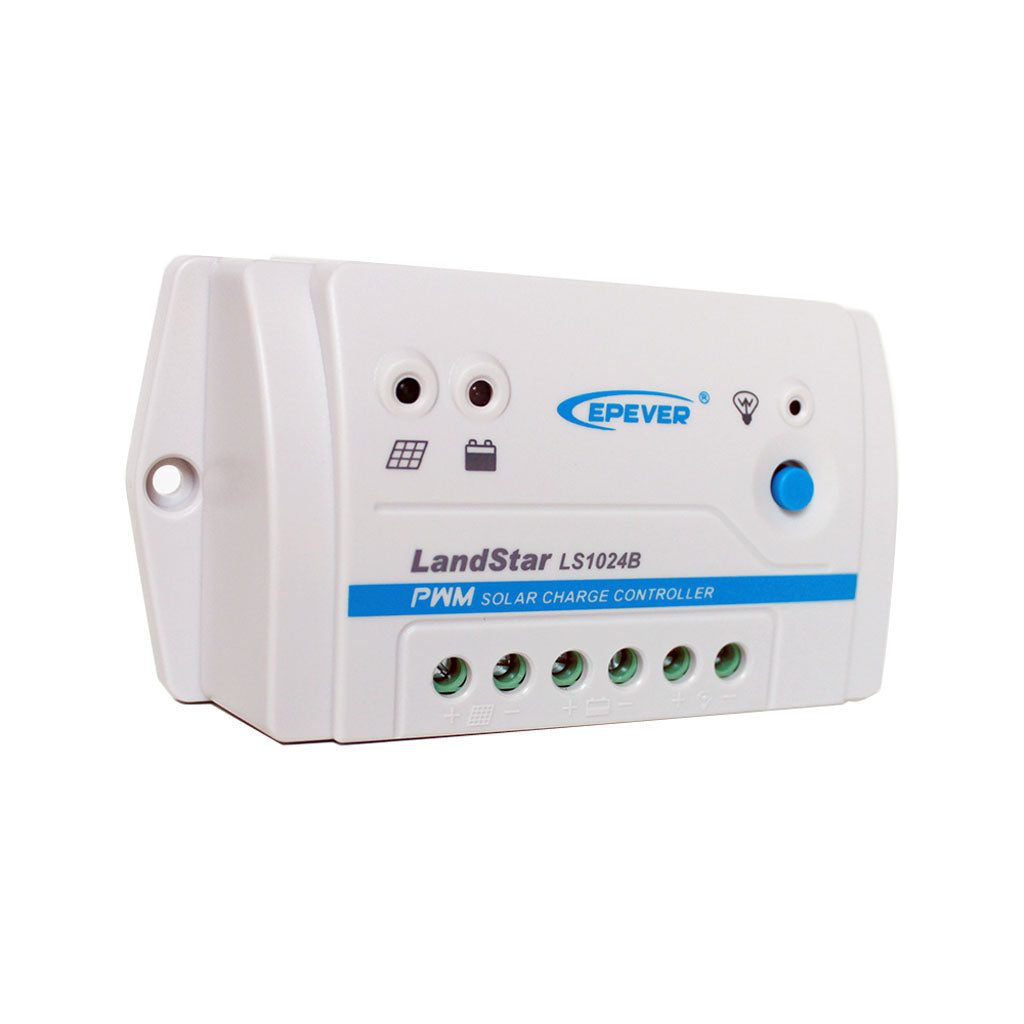

Charge controller PWM 10 Ampere

Solar charge controller 10 amps

Characteristics:

• Low-priced PWM controller.
• Internal temperature sensor.
• Three-stage battery charging (boost, float, equalization).
• Protected against overcurrent.
• Protected against short circuit.
• Protected against reverse polarity connection of the solar panels and/or battery.
• With low load voltage disconnect output.
• Automatic recognition of the battery voltage.
• The Charge Controller automatically adapts to a 12V or 24V system.

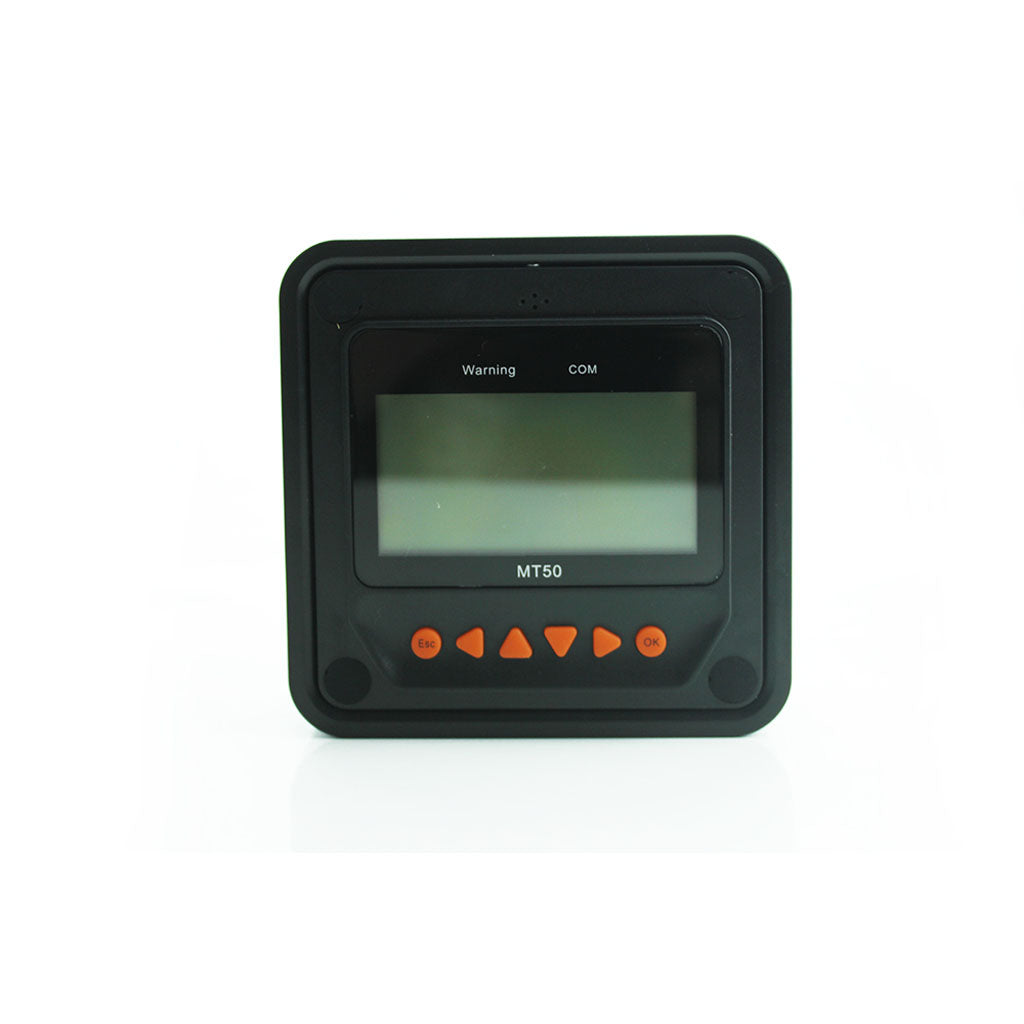

• Optional remote display.

The Charge Controller automatically adapts to a 12V or 24V system. Suitable for a maximum of 130 watts of panels at 12 volts, and for 260 watts of panels at 24 volts system voltage.

Specifications charge controller 10A:

• Model: 10A
• Type: PWM
• Battery voltage: 12/24V
• Maximum PV Voltage 12V/24V: 28V/55V
• Nominal charging current: 10 amps
• Nominal PV power: 12V 130Watt, 24V 260Watt
• Connection terminals: Screw terminals max 6mm2
