Battery 'fuel gauge', time-to-go indicator, and much more. The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature, and battery age. Complex software algorithms are needed to take all these variables into account. In addition to the main display options, such as voltage, current, and ampere-hours consumed, the BMV-700 series also indicates the state of charge, time-to-go, and power consumption in watts.
Bluetooth Smart
Use the Bluetooth Smart dongle to monitor your batteries with Apple or Android smartphones, tablets, MacBooks, and other devices.
Easy to install

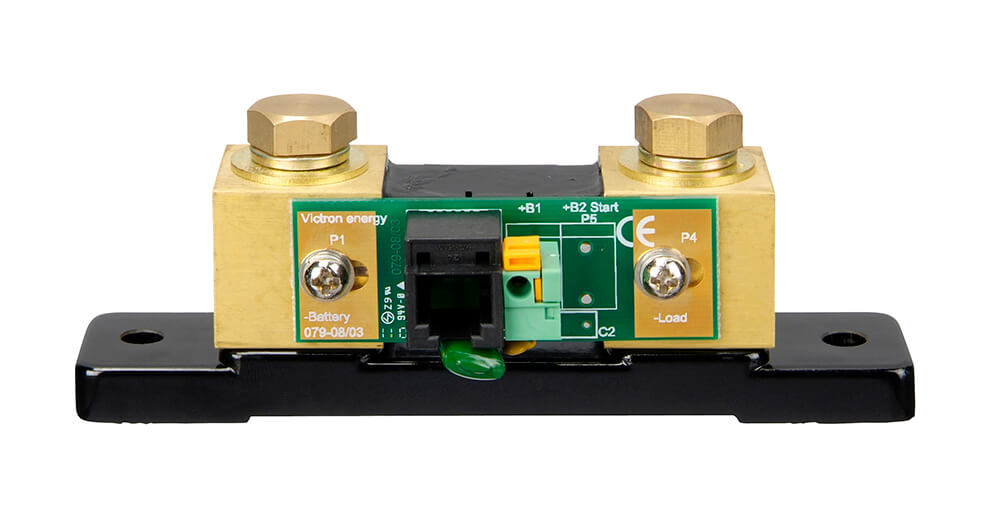

All electrical connections are made using the quick-connect PCB on the current shunt. The shunt is connected to the monitor with a standard RJ12 phone cable. Included: RJ 12 cable (10m) and battery cable with fuse (2m); no other parts are needed. Also included are a separate ring for the appearance of the front of a square or round display, a retaining ring for rear mounting, and screws for front mounting.
Easy to program (with your smartphone!)
A quick setup menu and a detailed setup menu with scrolling texts help you navigate through the various settings. You can also choose the quick and easy solution: download the smartphone app (Bluetooth Smart dongle required)
Standard Features

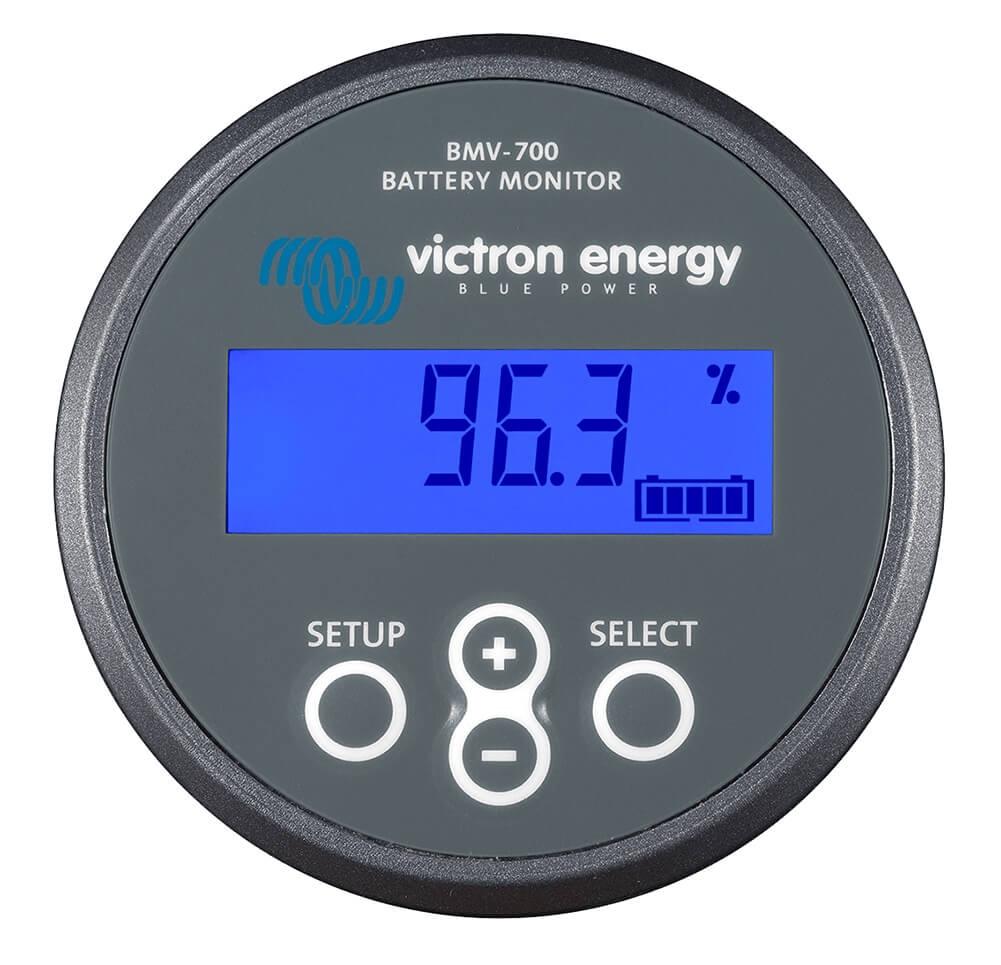

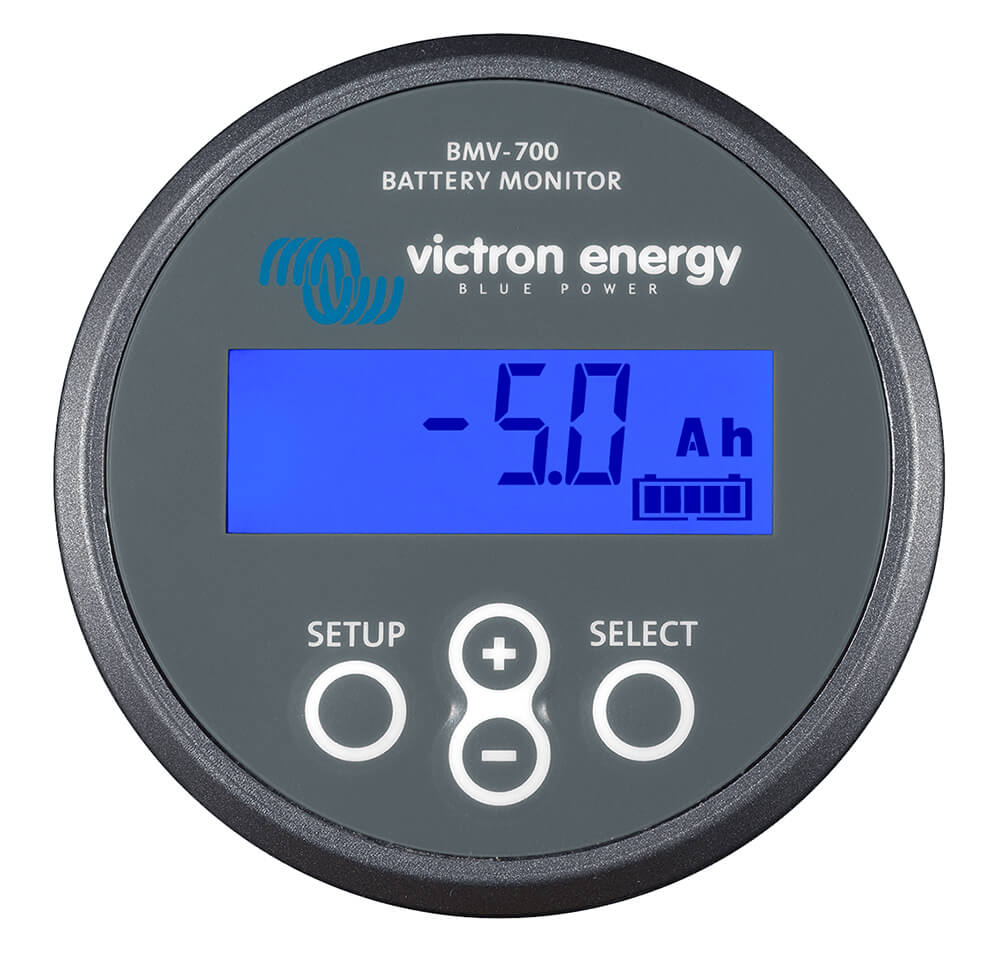

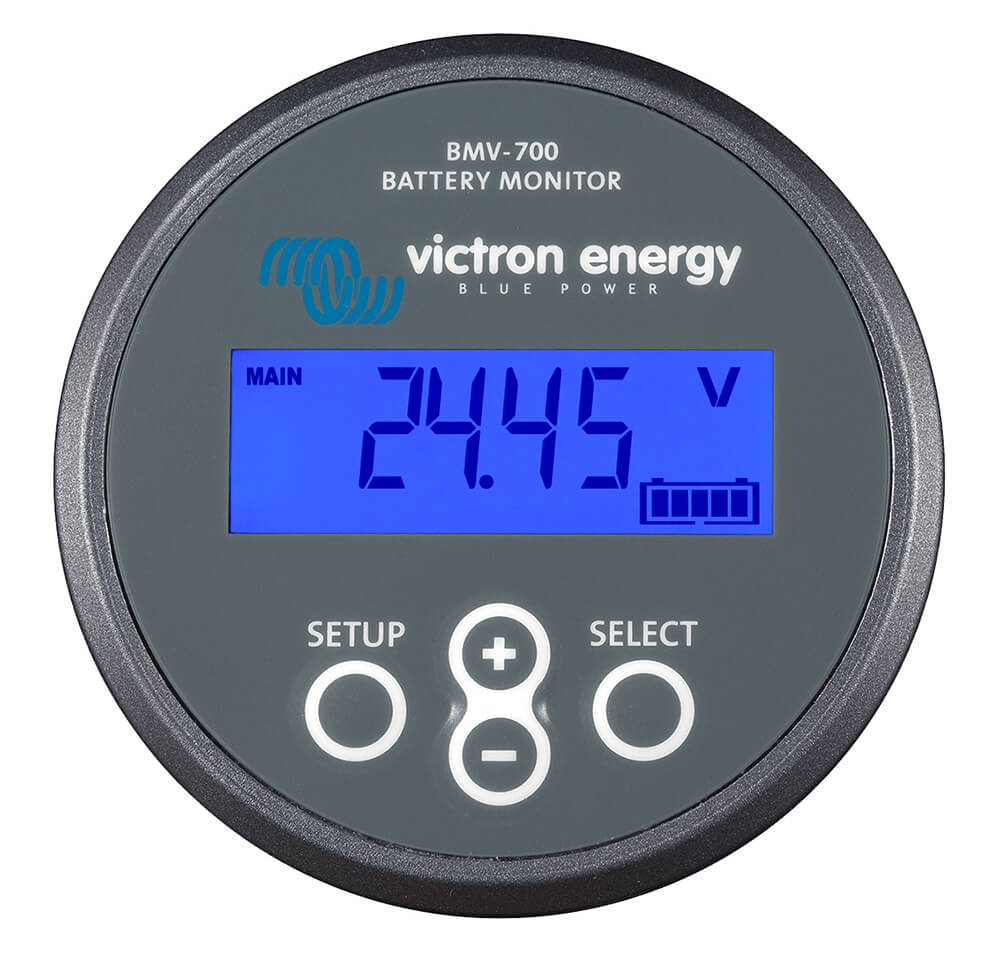

- Battery voltage, current, power, ampere-hours consumed, and state of charge
- Time remaining at the current discharge rate
- Programmable visual and audible alarm
- Programmable relay to shut down non-critical loads or to start a generator, if needed.
- 500 A shunt with quick connect and connection kit
- Shunt selection up to 10,000 amps
- VE.Direct communication port

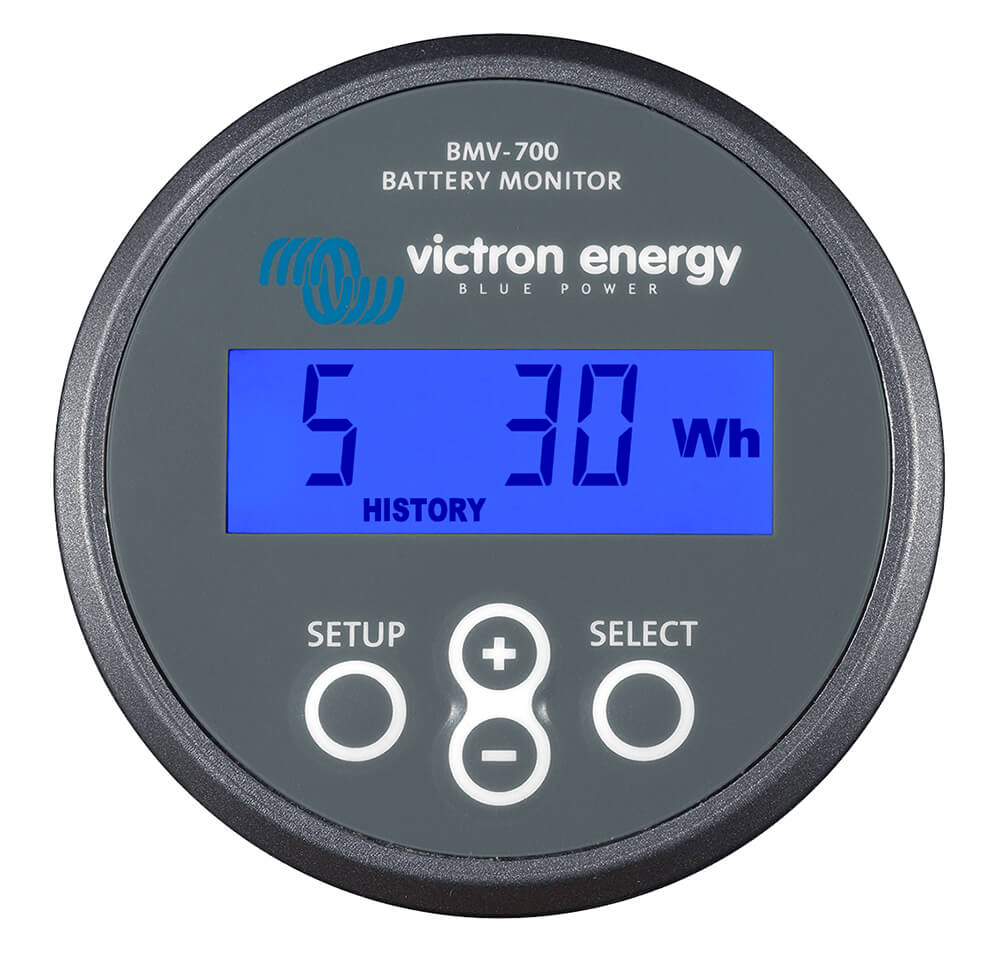

- Can store a large number of historical events that can be used to evaluate usage patterns and battery condition
- Wide input voltage range: 9.5 – 95V
- High current measurement resolution: 10 mA (0.01A)
- Low power consumption: 2.9 Ah per month (4 mA) at 12V and 2.2 Ah per month (3 mA) at 24V
