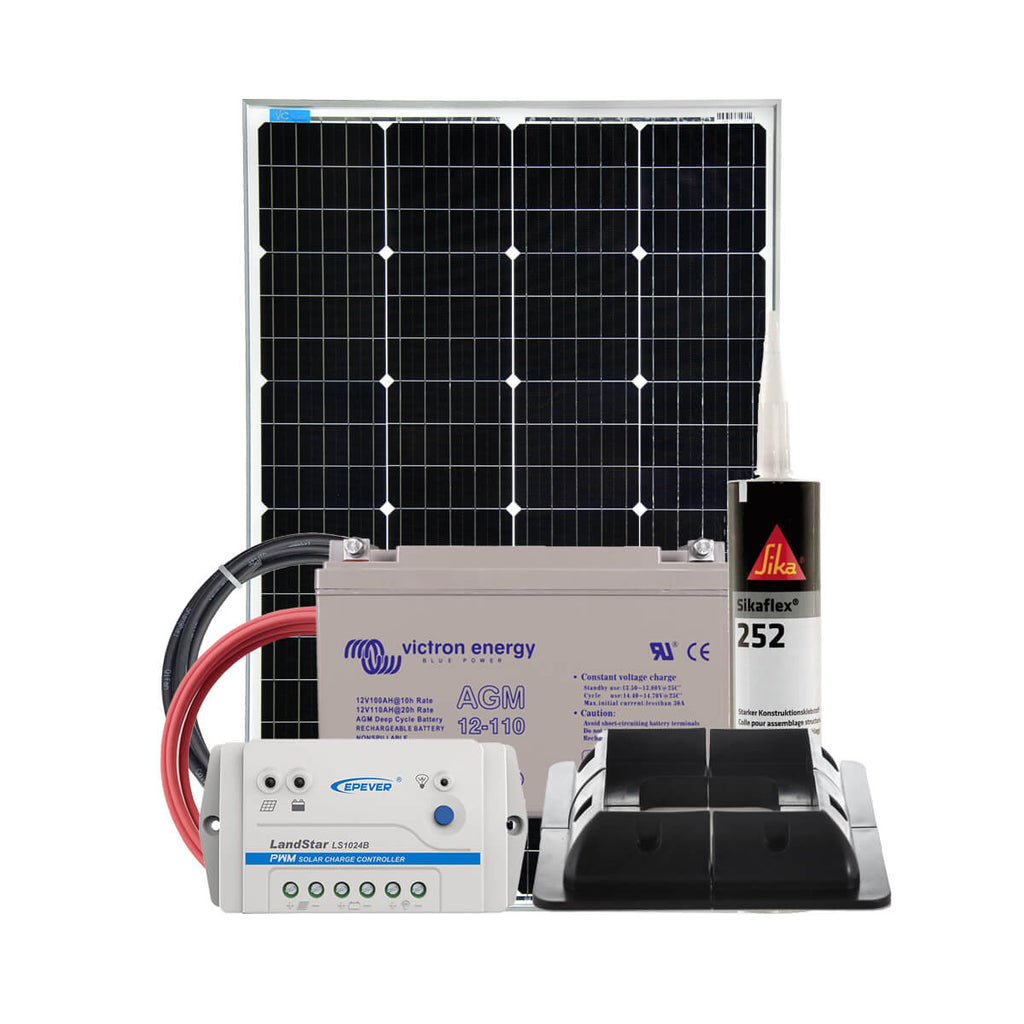

Solar panel set 120 Watt peak monocrystalline 12V with 110Ah AGM battery

Solar panel set 120 watt monocrystalline with 110Ah AGM battery

The ideal travel partner

Wherever you go or stand, with this solar panel system you are never in the dark and you are always provided with a clean, inexhaustible power supply. Ideal if you want to go wild camping, extend your plug-free stay, or simply want to avoid the expensive electricity rates at the campsite.

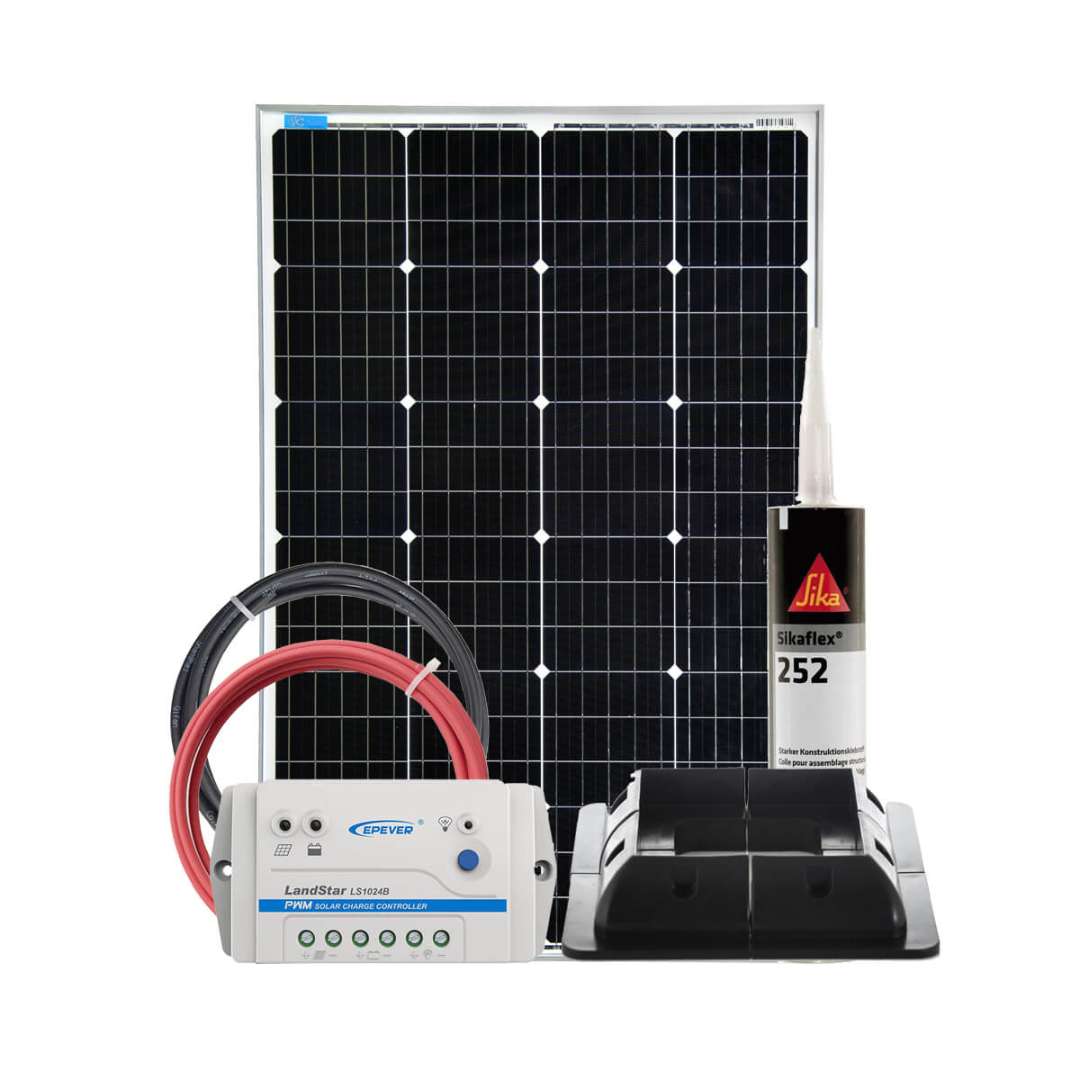

The set consists of:

✔ solar panel 120 watt monocrystalline
✔ Charge controller 10A PWM
✔ Set of corner pieces (white or black)
✔ Mounting kit Sikaflex 252
✔ Cable 5m red and 5m black
✔ Solar connector set
✔ AGM battery 110Ah

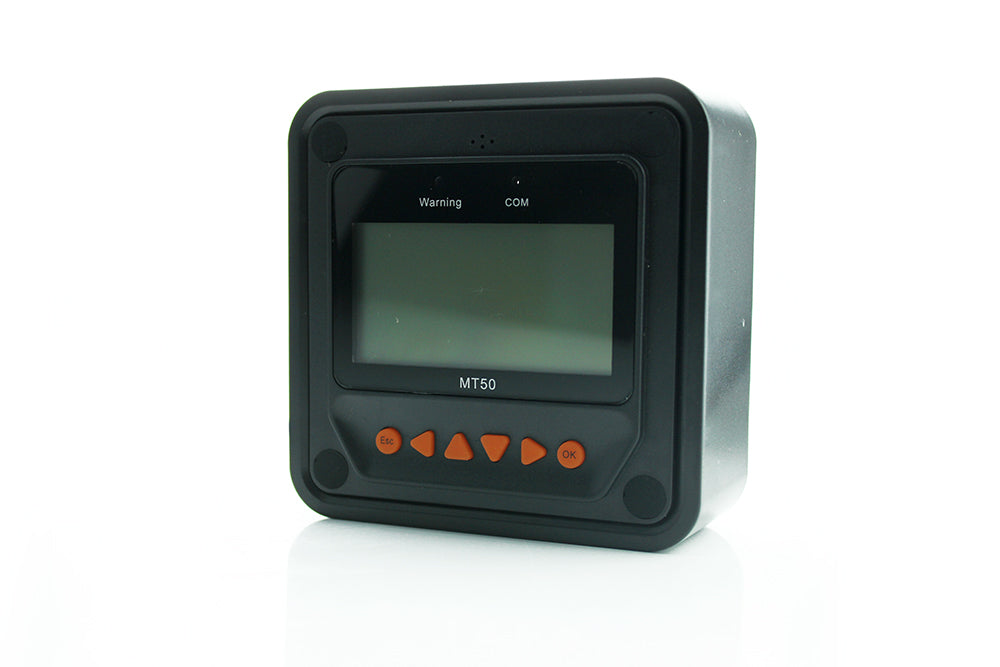

Optionally, you can opt for a roof duct and/or a display that is connected to the charge controller. On the display you can read how much the solar panel is charging and how full the battery is.

This solar panel set is easy to install on your camper, caravan or boat, but can also be used for other applications such as a garden house or log cabin.

This set is also available with 110Ah AGM if your current battery needs to be replaced or if you do not have a battery yet.

Solar panel 120 watt monocrystalline

Astonishing amount of power

The power of 120 watts peak is astonishing, especially for a panel that only measures 100.5x67cm. This panel delivers a cell efficiency of 20.6%, which means that this panel is in the top segment of the market and due to its small dimensions it fits almost every camper. With an average 4.4% better temperature coefficient, which determines the decrease in power when heated, this panel performs significantly better all year round than most solar panels offered.

All thanks to five busbar technology

The currently best-selling solar panels are often two or three busbar panels. When you look at the structure of a solar cell, it consists of a silicon wafer with busbars and fingers printed on it. The fingers are the horizontal lines that capture the energy (photon) that the cell releases when light falls on it. The bus bars are the vertical lines and these transport the energy to the end of the cell. The shorter the distance from the fingers to the bus bars, the less resistance and the more efficient the cell becomes. The busbars then transport this energy to the next cell. You can see the bus bar as a highway, the more lanes, the more traffic can cross it, in this case the more energy. Due to these improvements, this panel has a higher yield.

Now even longer lifespan

Thanks to the five busbar technology, this solar panel has less internal resistance, which ensures that the panel heats up less and is +2% more efficient than the currently common two and three busbar solar panels. Because the distance from the fingers to the busbar has been enormously shortened, these 5 busbar panels are significantly less affected by micro cuts, which means that the lifespan is longer than the usual 25 to 30 years, but more importantly with less power loss during this period.

Charge controller PWM 10A

Your battery always in perfect condition

The charge controller is an essential part of every solar energy system. The charge controller converts the voltage of the solar panel to the correct voltage for your battery. The charge controller continuously monitors your battery voltage and determines whether it needs to charge, and when it needs to charge, in what way, for example bulk charging, this means getting as much of the solar panel into the battery as possible or float charging, which is charging with a voltage that decreases so as to extend the life of the battery. The internal temperature sensor measures the temperature of the battery and determines whether it should increase or decrease the charging voltage to keep your battery in top condition.

The charge controller also has an output (load), this load is generally not used in existing systems. The load output is a protected output, as soon as the battery voltage becomes too low the controller turns off this output to prevent deep discharge of the battery. The load output is limited to the power of the controller, so the 10 amp version can supply 10 amps via this output.

Specifications

✔ Three-stage battery charging (boost, float, equalization).
✔ Protected against overcurrent.
✔ Protected against short circuit.
✔ Protected against reverse polarity connection of the solar panels and/or battery.
✔ With low load voltage disconnect output.
✔ Automatic recognition of the battery voltage.
✔ The Charge Controller automatically adapts to a 12V or 24V system.
✔ Optional remote display.

Set of plastic mounting corner pieces

Beautiful and functional

Mounting a solar panel on the roof of your camper, caravan or boat has never been easier with this set of corner pieces. They are made of wear-resistant and durable ABS plastic and are available in black or white so that they always match the appearance of your vehicle. The panel is glued and/or screwed into the corner pieces and then glued to the roof itself. Sikaflex 252 mounting kit If it really never has to come loose With Sikaflex 252 mounting kit, the mounting supports are secured to your roof and you can rest assured that it is properly secured. When applying the sealant, it is important to properly prepare the parts to be glued, i.e. lightly sand them, this provides more surface on which the sealant can adhere and then make everything thoroughly free of grease, which also ensures better adhesion. After a drying time of 24 hours, you can get back on the road.

Solar cable

A good cable is worth its weight in gold

It seems like a simple part, a piece of cable, but not everything is as it seems. The cable must be able to transmit large varying currents. Have a low internal resistance so that losses in the cable are kept to a minimum. It must be resistant to all weather influences such as sun (UV), rain, wind and even snow and ice. In addition, the cable is regularly found in a dirty engine compartment, in heat, in oil, grease or even fuel. By using the red cable for the plus and the black for the minus you prevent connection errors. This solar cable performs excellently in all these areas and is worth its weight in gold.

Solar connector set

The optimal connection

A good connector has the following properties. It's waterproof, it's easy to assemble, it has low internal resistance, which keeps the connector from heating up, and it passes current with minimal loss. This connector has all these properties. Because it is waterproof, it can simply be left outside, for example on the (camper) roof.

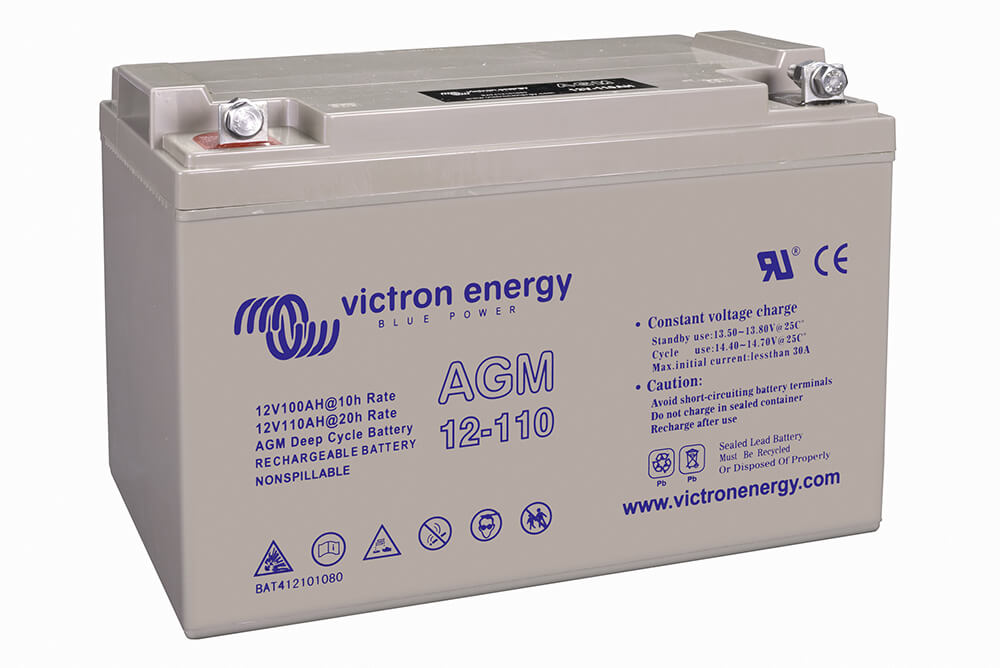

AGM battery

Reliable storage of your generated energy

Absorbed Glass Mat (AGM) batteries are optimized for cyclic applications and can also supply a lot of power, which is great for a heavy inverter, for example. This AGM battery supplied with the set can be used as a replacement for your current battery, simply exchange it or as a battery to create a stand-alone system.
