Solar panel set 120W 12V flexible lifting roof camper

Product information

Suitable for

✓ Water pump
✓ LED lighting
✓ Charge phone

Product description

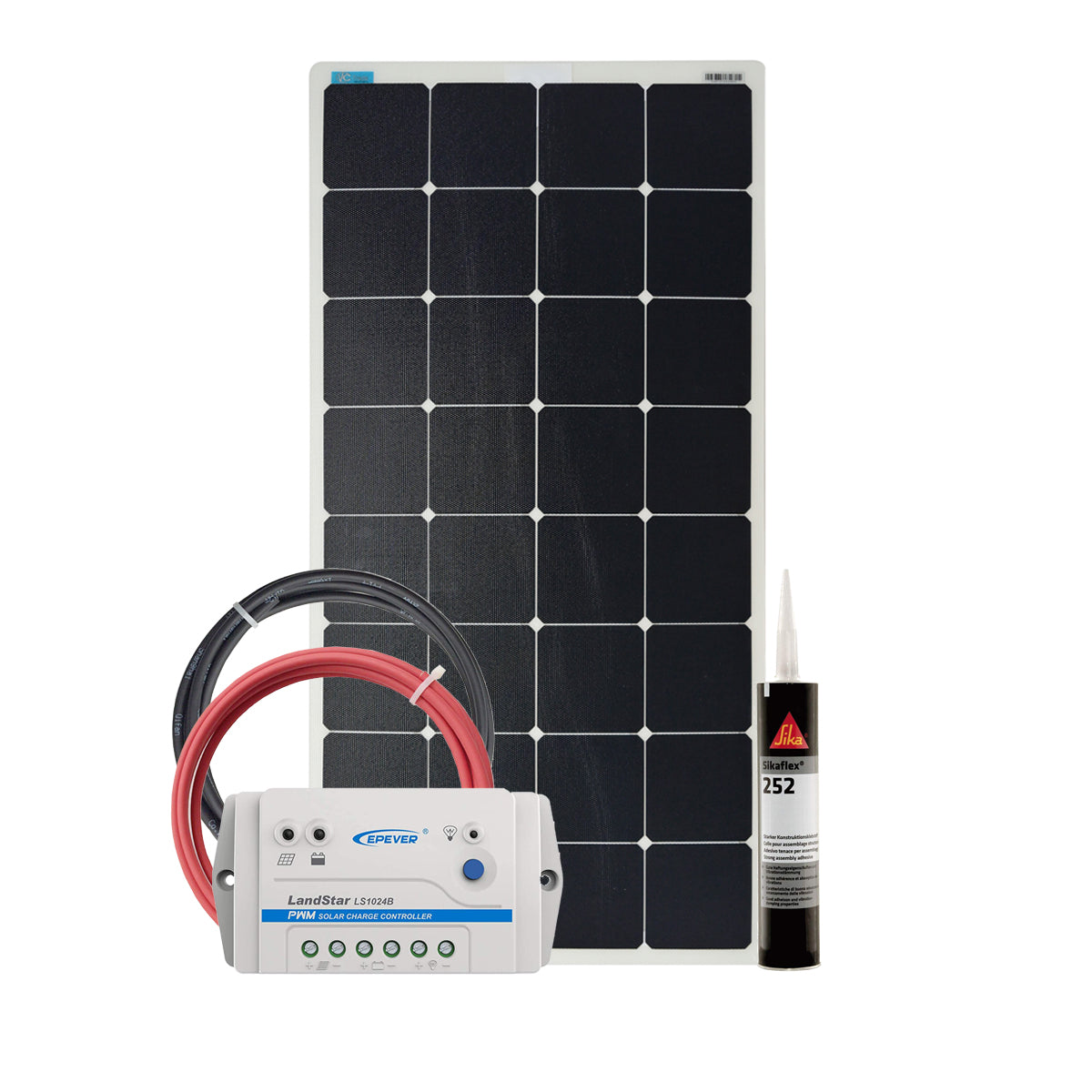

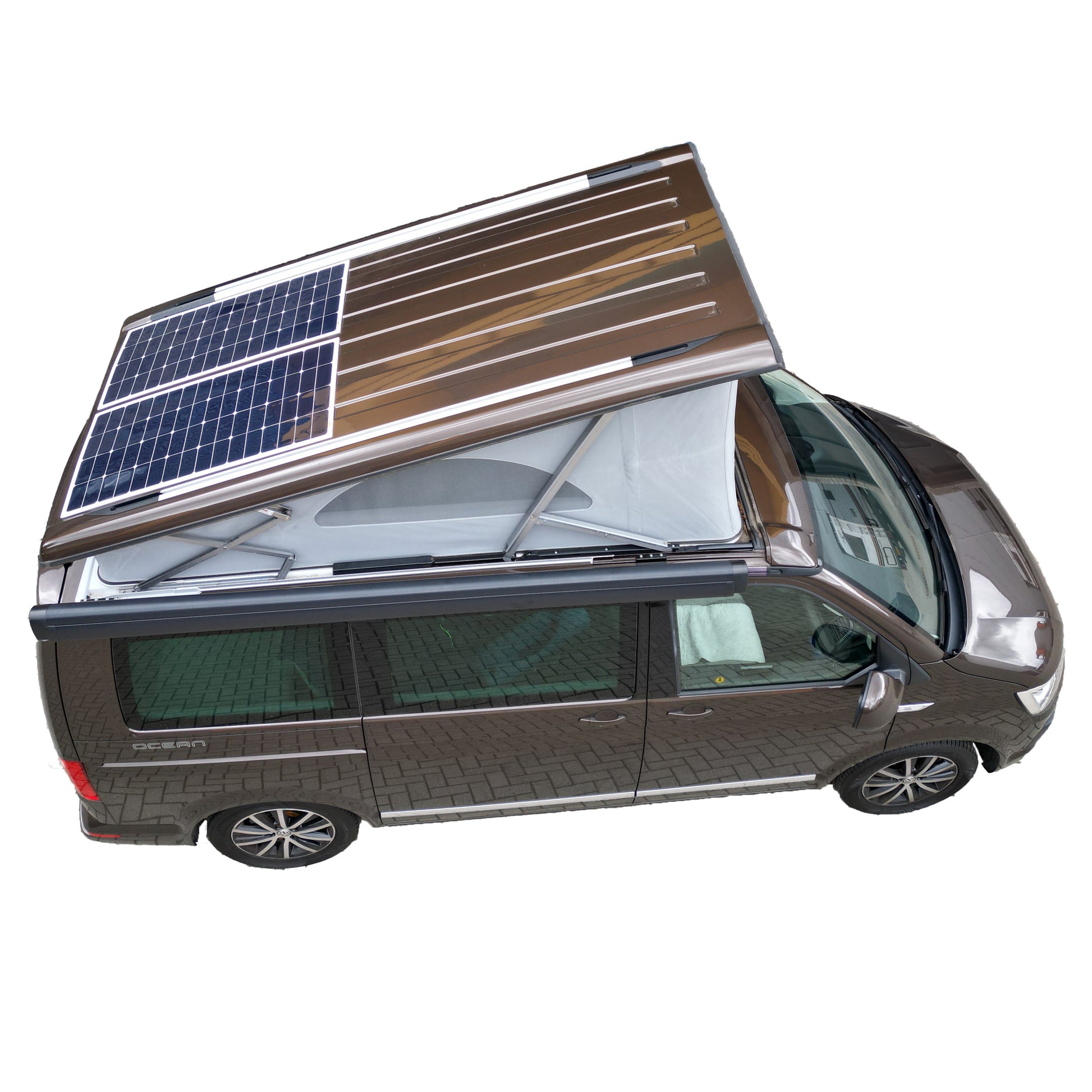

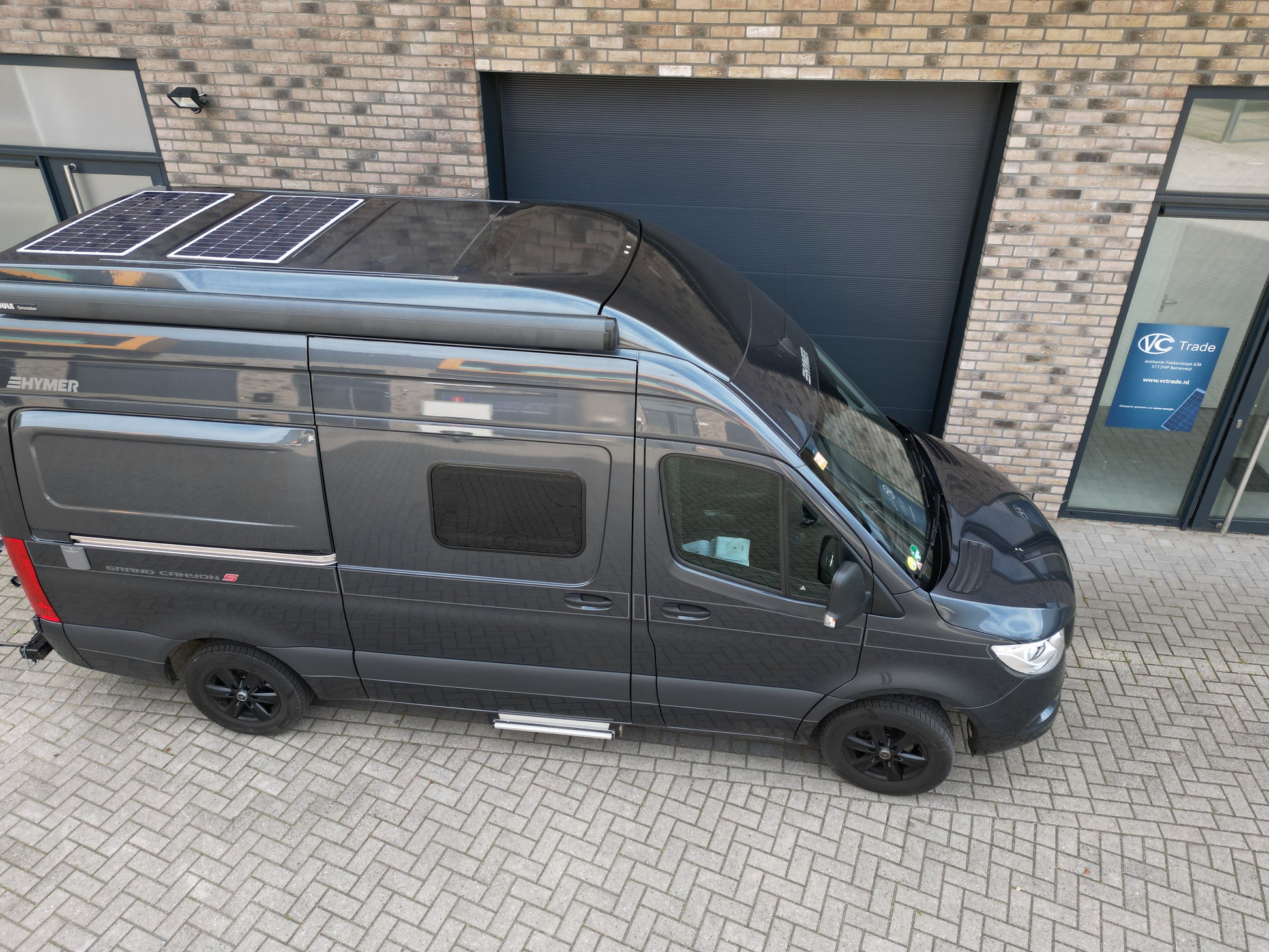

Complete set tailored for fence roof campers

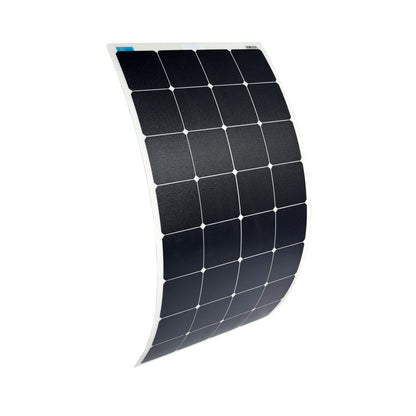

Solar panel 120 Watt flush

This set comes with a flexible 120 Watt peak flush panel. Flush means that the cable is at the bottom, so no roof duct is required because the cable goes under the panel into your roof. The panels are ultra-light and do not place any strain on your lifting roof. All solar panels are equipped with ultra-fast diodes, so you can connect them in series or parallel, no hotspots can arise and they still have a good yield even in the shade.

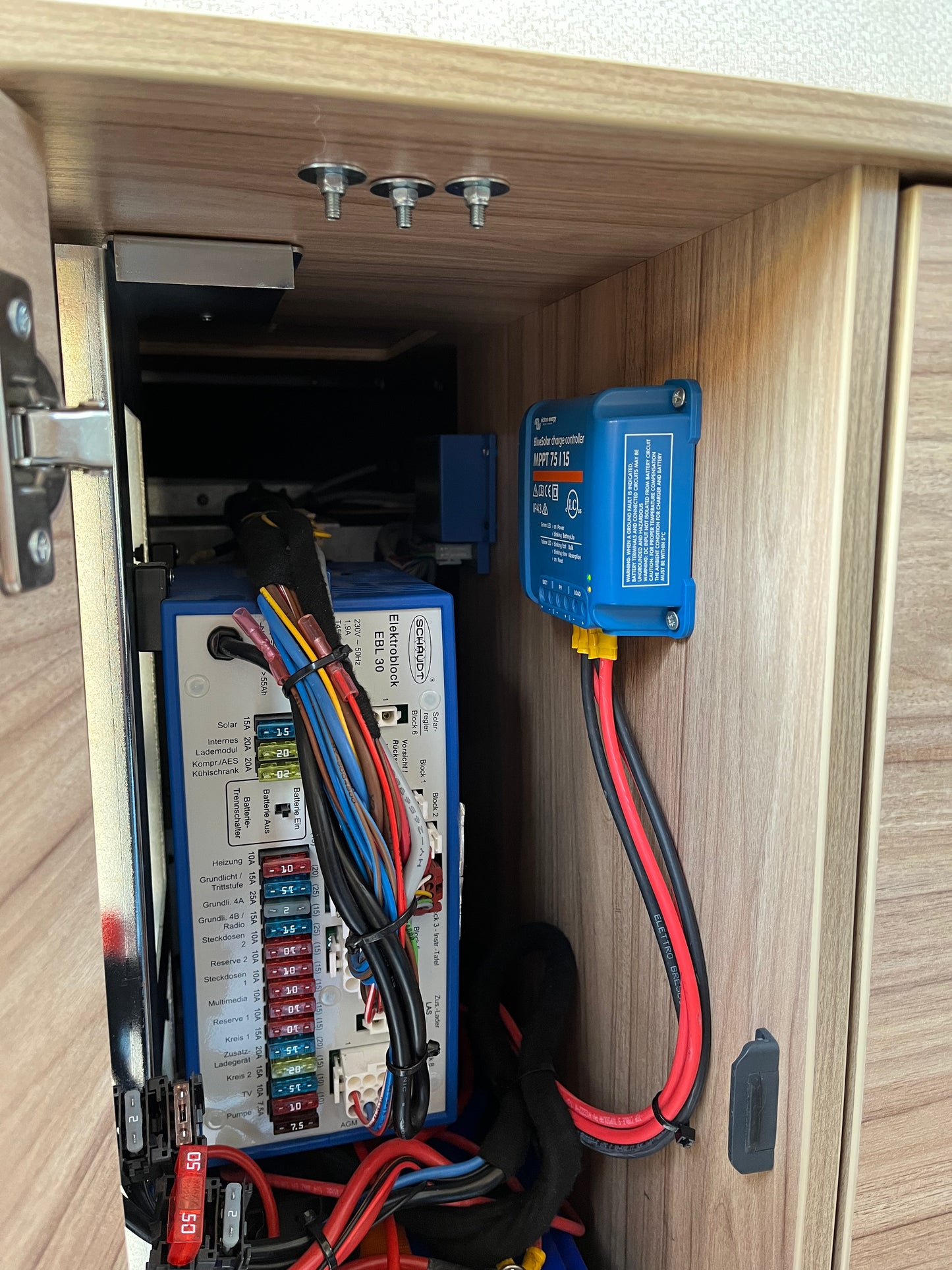

Charge controller

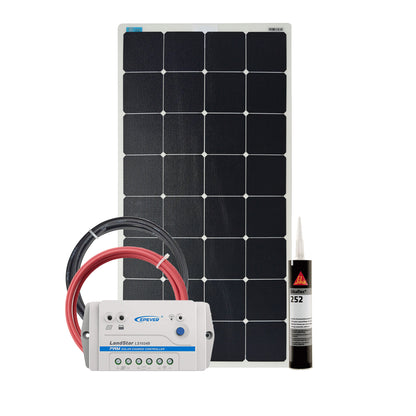

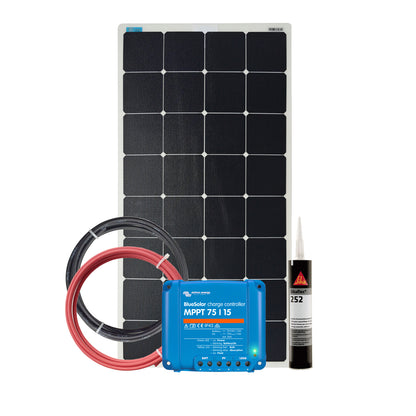

With this set you can choose a PWM charge controller or a Victron MPPT charge controller. PWM controllers are known for their quality, simplicity and very good electrical operation. An MPPT controller continuously searches for the maximum power point, or the point at which the panel supplies the most power. In favorable cases, this produces 10 to 30% more energy compared to conventional PWM controllers. This MPPT controller can transmit 220 Watts of solar energy to the battery, which is why a 2nd panel can be connected. If you want to use a 2nd panel, always use the MPPT controller, you do not need anything else for this expansion.

Cable and mounting kit

To complete the set, we supply 5 meters of red and 5 meters of black solar cable, for between the panel and the controller and which can also be used between the controller and the battery. A tube of Sikaflex 252 kit to attach the panel, which ensures a longer lifespan of the flexible solar panel by ensuring a flexible connection between the solar panel and the camper roof.

Energy supply

This set is a great addition to your energy supply for your camper with a lifting roof and is easy to install yourself with minimal tools required.

For more information about solar panels on your camper, read our extensive page with answers to the most frequently asked questions.

Product specifications

✓ Solar panel dimensions: 1060x540x2mm
✓ Length of solar panel cable: 1.5 meters
✓ Weight: 2.08kg
✓ Cell type: Monocrystalline
✓ Max wattage (Pmax): 120 Watts
✓ Charge controller: PWM or MPPT (MPPT controller is suitable for 2 panels)
✓ System voltage: 12 Volts
✓ Operating temperature: -40°C to +85°C
✓ Power warranty: 2 years 95% + 5 years 85% power delivery
✓ Warranty: 2 years
