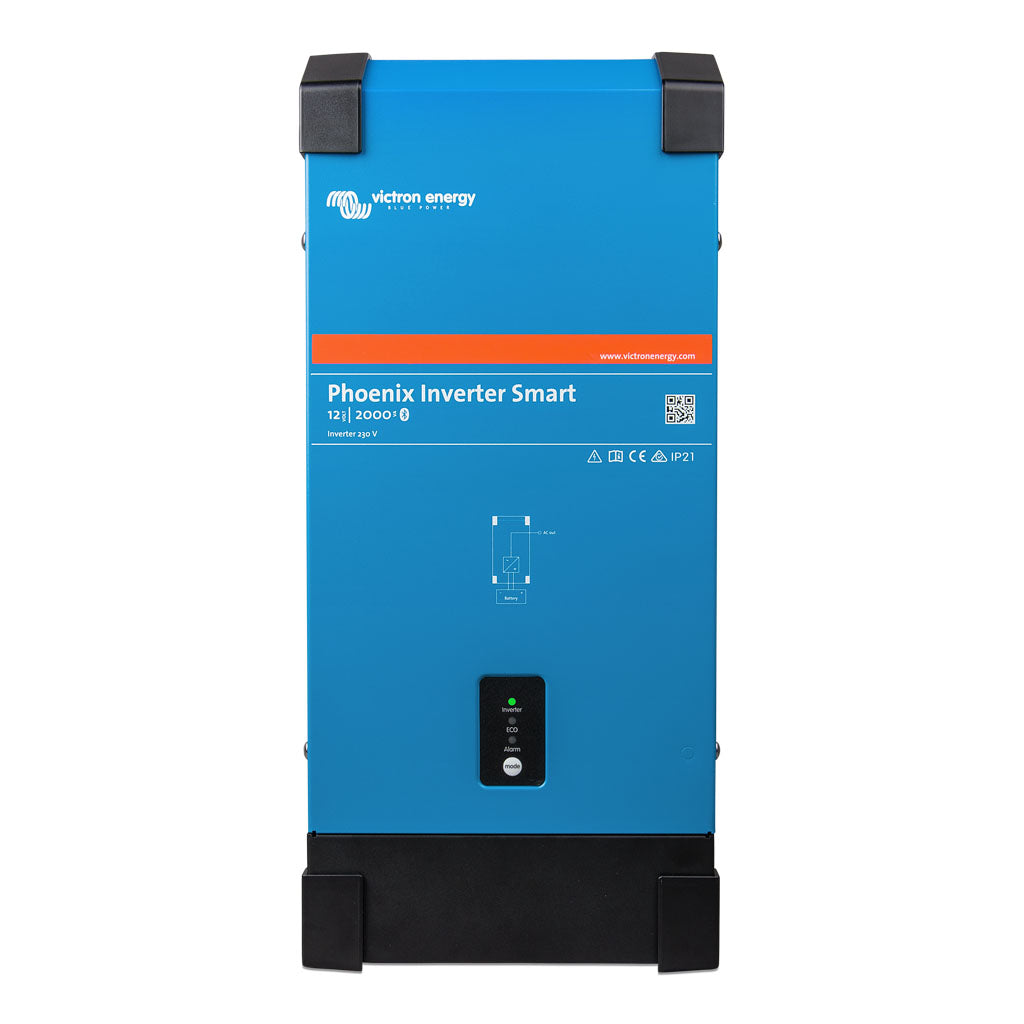

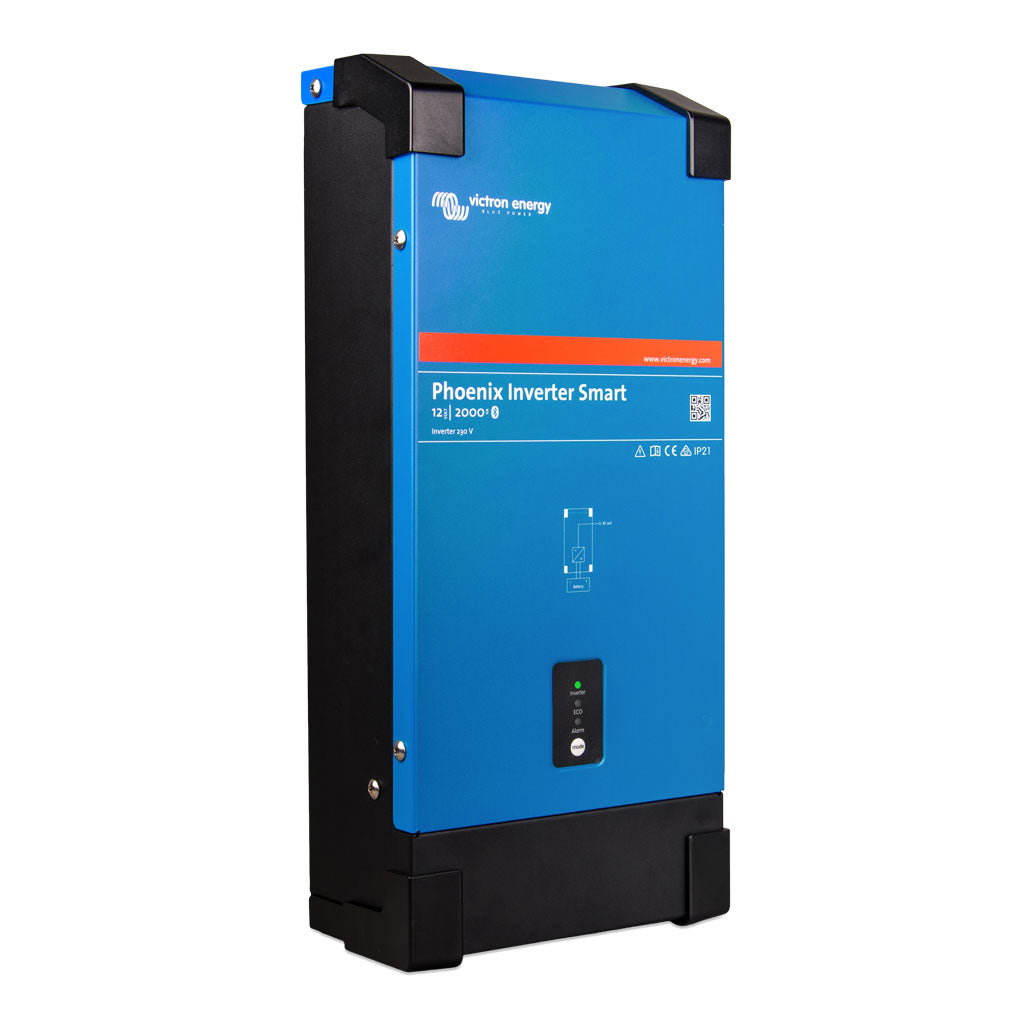

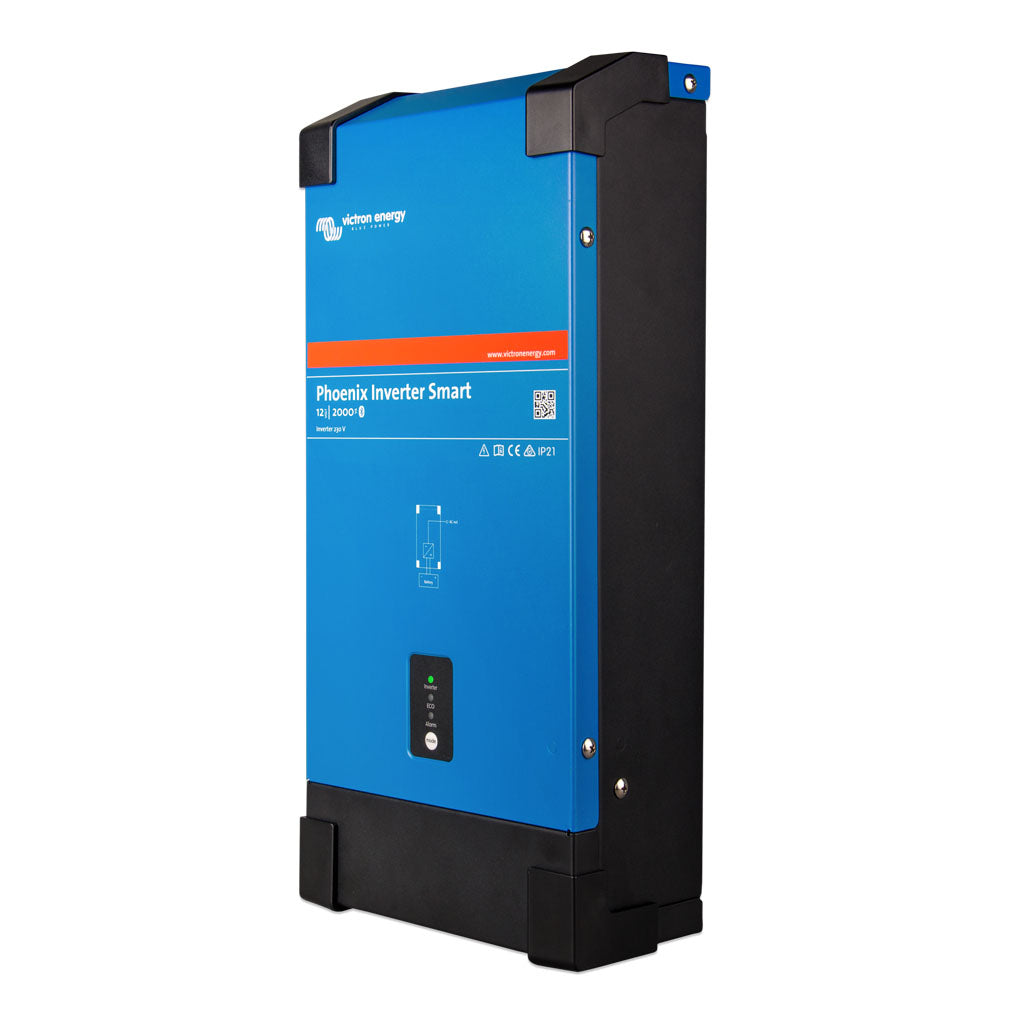

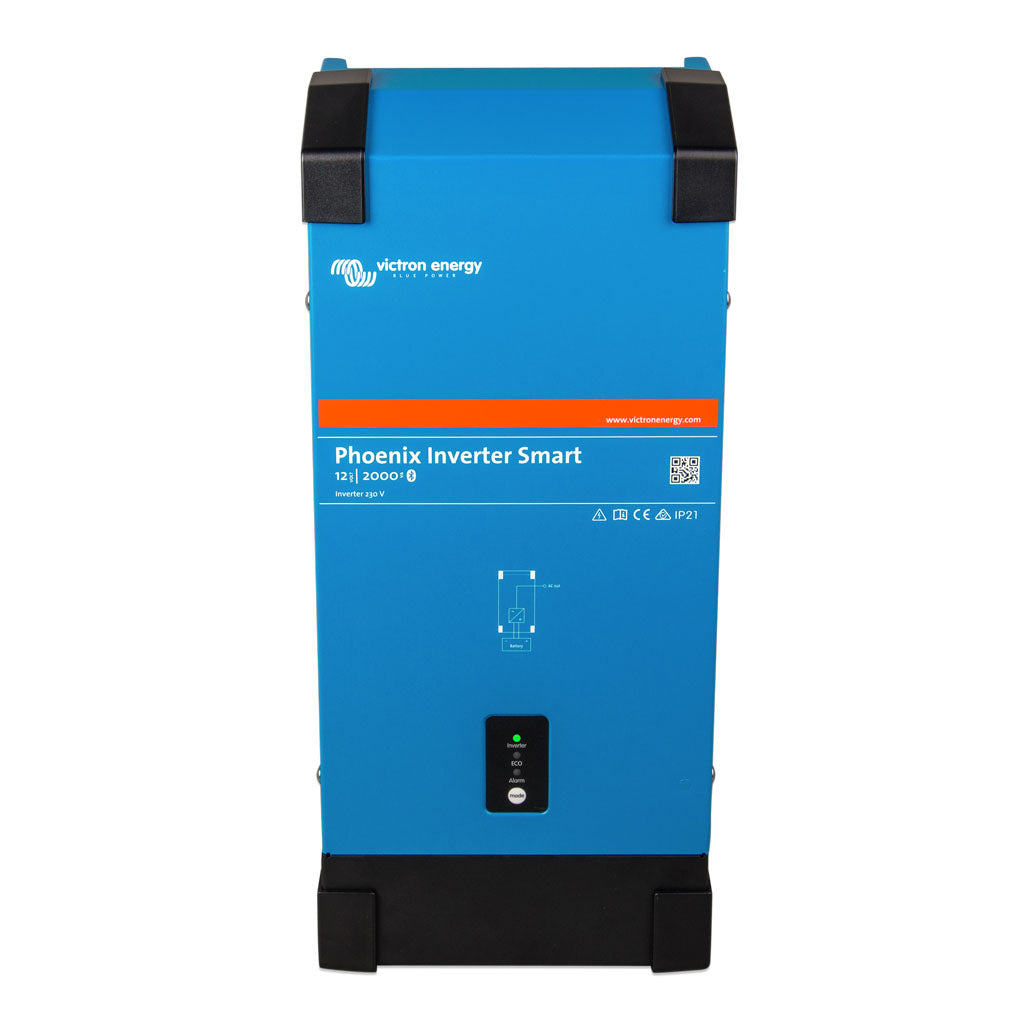

Victron Phoenix Smart inverter 12/2000 230V

Victron Phoenix inverter 12/2000 230V Smart

This pure sine wave DC/AC inverter converts 12 VDC to 230 VAC, for devices with continuous power of 1600W (peak power 3200W). The inverter is equipped with integrated Bluetooth and a VE.Direct communication port.

Download the VictronConnect app

Download for Android from Play Store
Download for iOS from App Store
Download for Mac from App Store

This new model Victron Phoenix inverter 12/2000 230V Smart provides household appliances on 230V alternating current with the correct supply voltage from batteries with direct current. This pure sine wave DC/AC inverter converts 12 VDC to 230 VAC, for devices with continuous power at a non-linear load of 2000VA (1600W with peak power of 3200W). The inverter is equipped with integrated Bluetooth and a VE.Direct communication port. Thanks to Bluetooth, the inverter can be operated with a smartphone, tablet or PC via the Victron Connect App for information and settings!

Integrated Bluetooth: completely configurable with a tablet or smartphone

• Low battery alarm
• Low battery disable and restart levels
• Dynamic disable: load dependent disable level
• Output voltage: 210 - 245V
• Frequency: 50Hz or 60Hz
• ECO mode on/off and ECO mode sensation level
• Alarm relay

Surveillance

• Input and output voltage, load and alarms

VE.Direct communication port

The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable required) to configure and monitor the same parameters.

Proven reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short-circuit proof and protected against overheating, either due to overload or high ambient temperature.

High starting power

Needed to start loads such as power converters for LED lamps, halogen lamps or power tools.

ECO mode

In ECO mode, the inverter switches to standby when the load drops below a preset value. Once in standby, the inverter switches for a short period every 2.5 seconds (adjustable). If the load exceeds a preset level, the inverter remains on.

Remote on/off

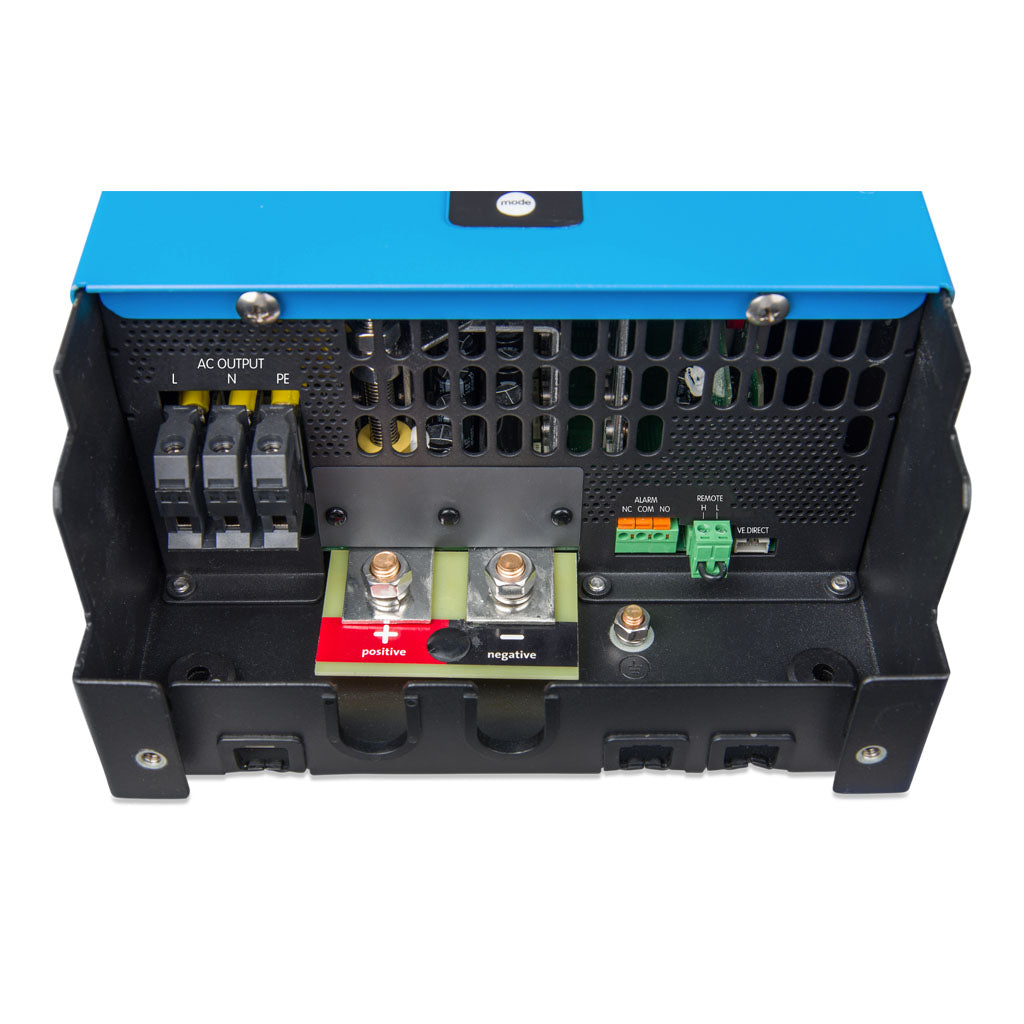

An external on/off switch can be connected to a two-pin connector. Alternatively, the H terminal (left) of the two-pole connector can be switched to battery positive, or the L terminal (right) of the two-pole connector can be switched to battery minus (or for example, the chassis of a vehicle).

LED diagnosis

Consult the manual for a description.

Specifications inverter Phoenix 12/2000 230 Volt:

• Model: Phoenix 12/2000 Victron Energy
• Type: Pure sinus
• Continuous power at 25°C: 2000VA
• Continuous power at 25°C / 40°C: 1600 / 1450 Watt
• Peak power: 4000 Watts
• AC voltage: 230V/AC
• System voltage: 12 Volts
• Undervoltage protection: Yes
• No-load power: 8 Watts
• Operating temperature: -40°C to +65°C
• Connection terminals: M8 Bolts
• Maximum cable cross-section: 70mm2
• Standard AC outputs: Screw terminals
• Weight: 13kg
• Dimensions: 485x219x125mm
