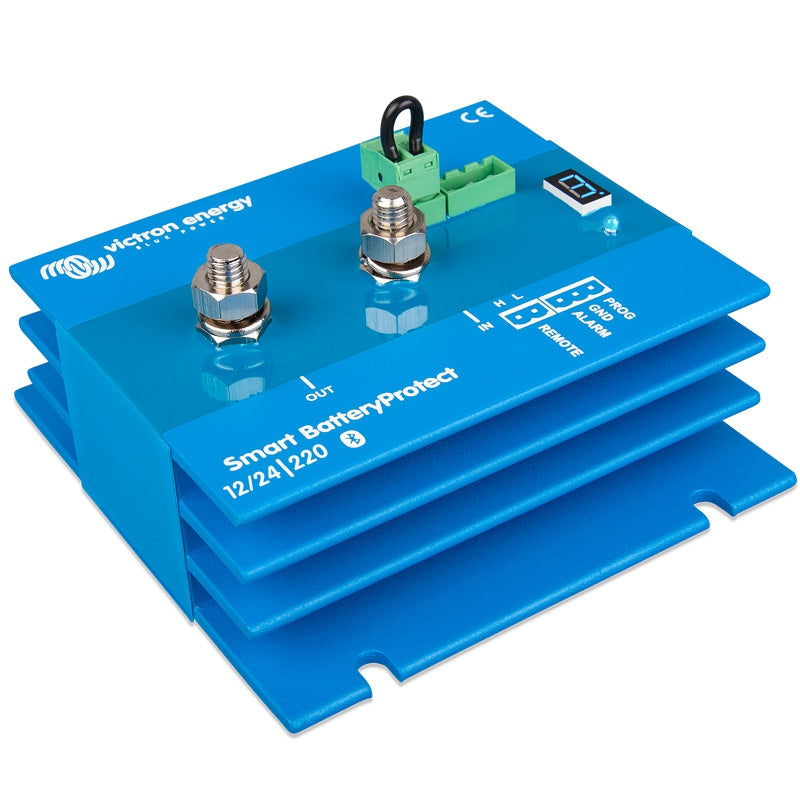

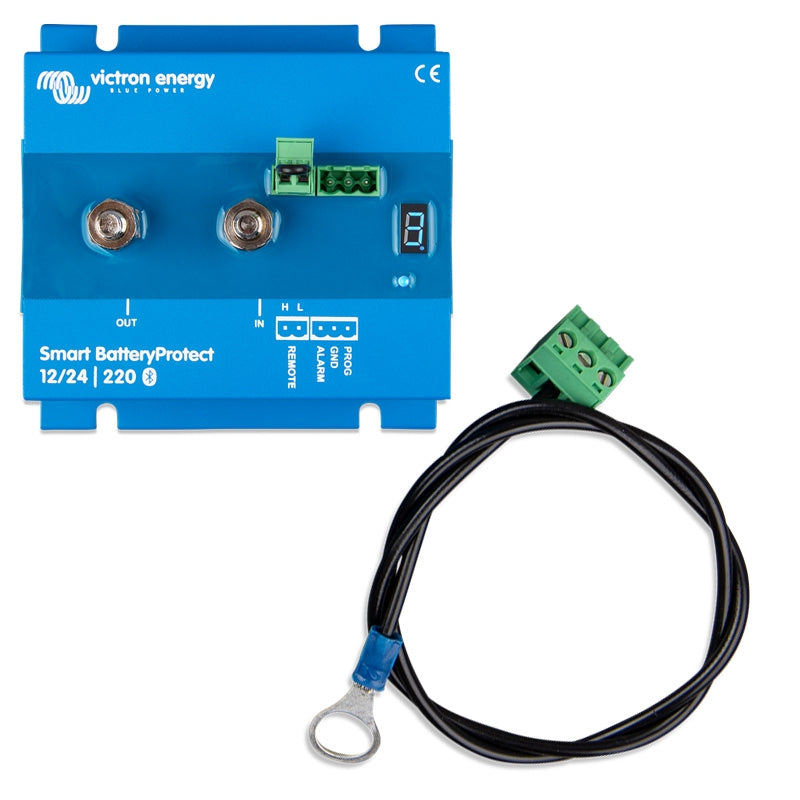

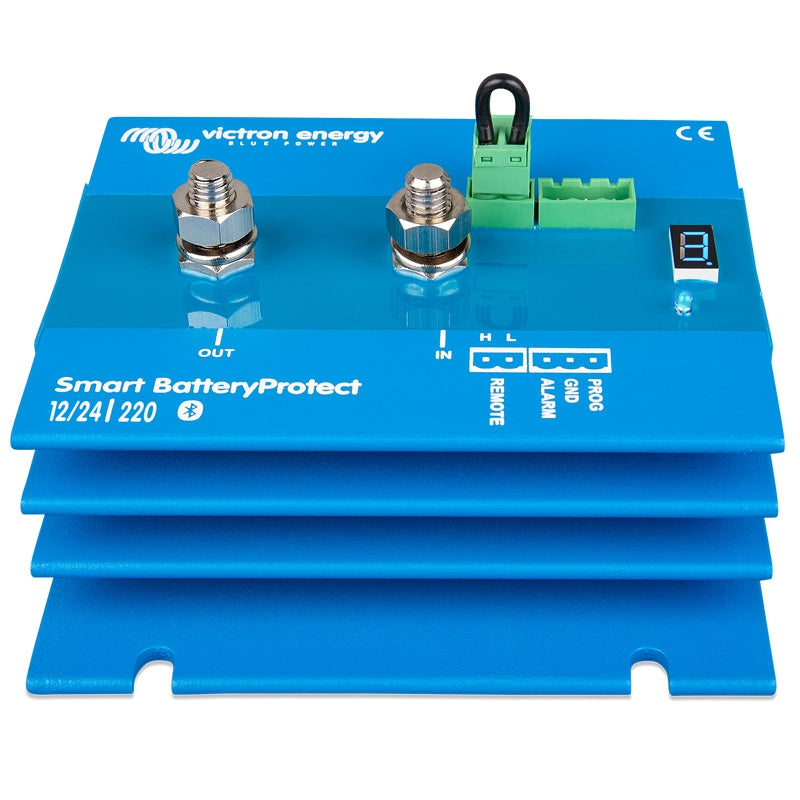

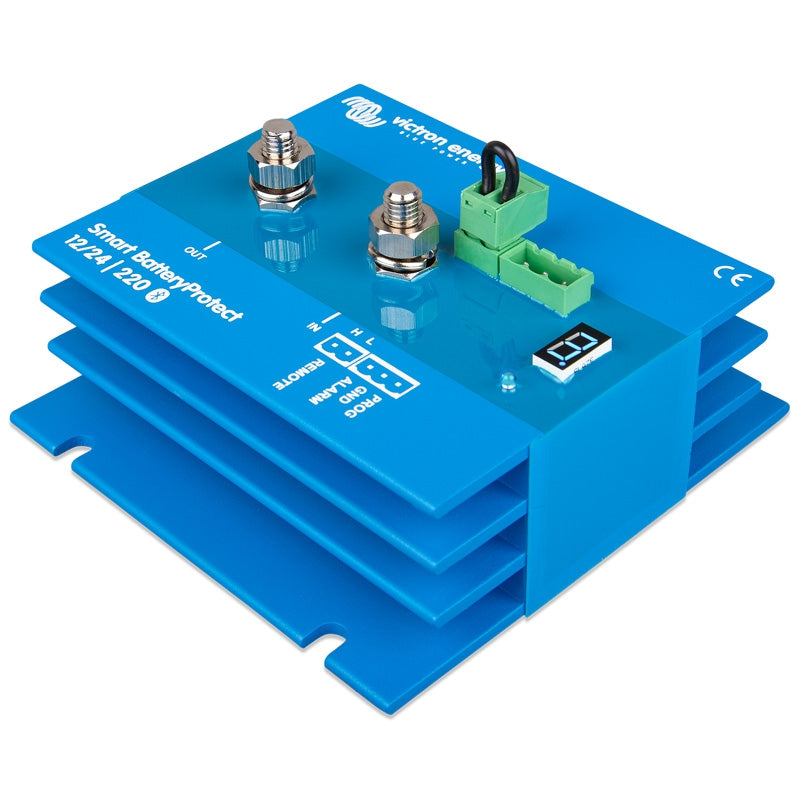

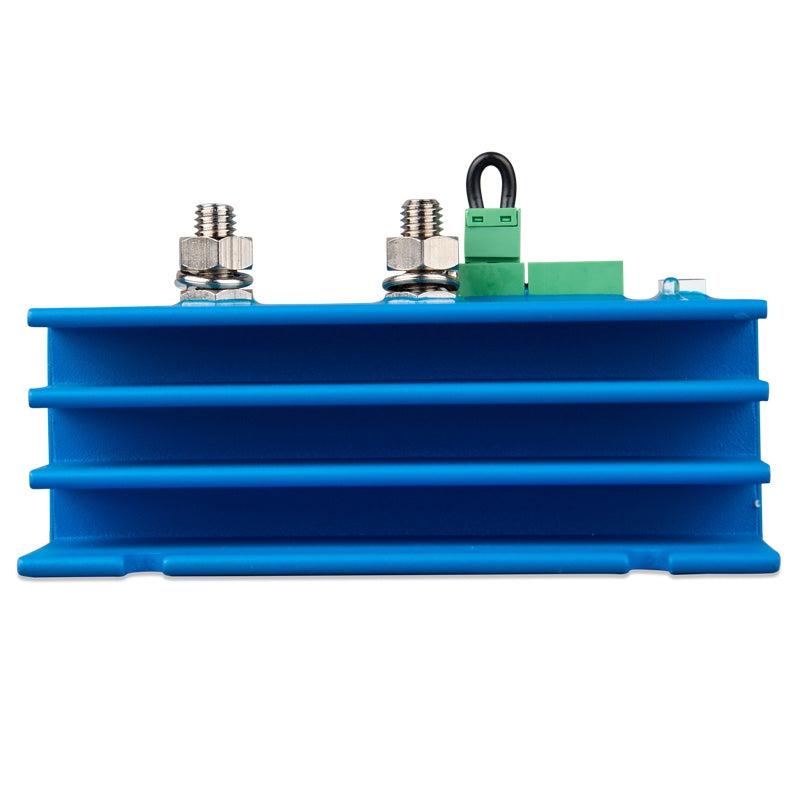

Victron Energy Smart Battery Protector 220A

The Victron Energy Smart Battery Protector 220A disconnects the battery from non-essential loads before it is completely discharged (which can damage the battery) or before it has insufficient power to switch on the motor.

When using Bluetooth to program this Smart Battery Protector, all required enable/disable levels can be set. Alternatively, one of nine predefined enable/disable levels can be set using the programming pin. Bluetooth can be turned off if necessary.

Please note: this Battery Protector is not designed for counter current charging devices.

Automatic detection 12/24V

The Smart BatteryProtect automatically detects the system voltage only once.

Bluetooth: easy programming

When using Bluetooth to program the Smart Battery Protector, all required enable/disable levels can be set. Alternatively, one of the nine predefined on/off levels can be set with the programming pin. If necessary, Bluetooth can be turned off.

A special setting for lithium-ion batteries

In this mode the BatteryProtect can be controlled by the VE.Bus BMS.
Please note: the BatteryProtect can also be used as a charge interrupter between a battery charger and a Li-ion battery.

Super low power consumption

This is important in the case of lithium-ion batteries, especially after a low voltage shutdown.

Overvoltage protection

To prevent damage to sensitive loads due to overvoltage, the load is disconnected as soon as the DC voltage reaches 16V resp. exceeds 32V.

Protected against ignition

No relays, but MOSFET switches and therefore no sparks.

Delayed alarm output

The alarm output is activated if the battery voltage drops below the preset disconnect level for more than 12 seconds. Therefore, starting the engine does not activate the alarm. The alarm output is an open-collector, short-circuit proof output connected to the negative (minus) rail, max. current 50mA. The alarm output is generally used to activate the buzzer, an LED or relay.

Delayed load disconnection and delayed reconnection

The load is disconnected 90 seconds after the alarm is activated. If the battery voltage rises back to the coupling threshold within this time frame (after the engine has been started, for example), the load is not disconnected.
The load is reconnected 30 seconds after the battery voltage rises above the preset reconnection voltage.

Specifications:

Smart Battery Protector Smart BP-220
Maximum continuous charging current* 220A
Peak current (during 30 seconds) 600A
Operating voltage range 6 – 35V
Power consumption Bluetooth on On: 1.4mA, When off or low voltage trip: 0.9mA
Power consumption Bluetooth off On: 1.2mA, When off or low voltage trip: 0.7mA
Exit delay alarm 12 seconds
Maximum load on alarm output 50mA (short circuit resistant)
Load decoupling delay 90 seconds (immediately if activated by VE.Bus BMS)
Load re-connection delay 30 seconds
Default thresholds Disconnect: 10.5V or 21V Connect: 12V or 24V
Operating temperature range Full load: -40°C to +40°C (up to 60% of rated load at 50°C)
IP Value Electronics: IP67 (moulded), Connections: IP00
Link M8
Weight 0.8kg
Dimensions (hxwxd) 62 x 123 x 120mm
*Battery protector is not designed for reverse current of chargers
