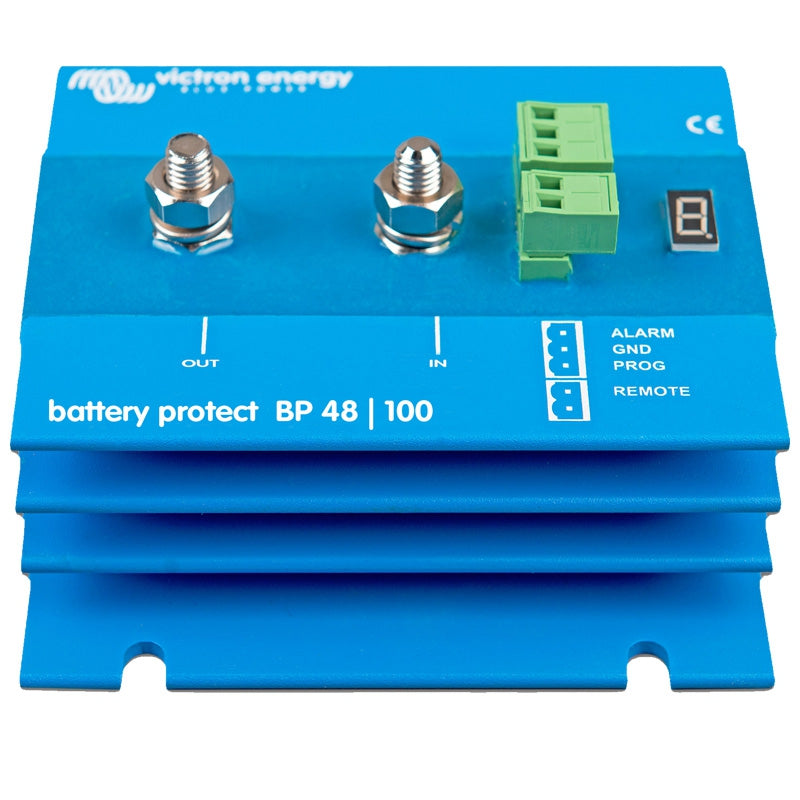

Battery protector 100A - Victron Energy

Product information

Product description

The BatteryProtect disconnects the battery from non-essential loads before the battery is completely discharged (which would damage the battery) or before there is insufficient power left to start the engine.

Automatic detection 12/24V

The BatteryProtect automatically detects the system voltage

Simple programming

The BatteryProtect can be set to switch on/off at different voltages. The 7-segment display shows the selected setting.

A special setting for lithium-ion batteries

In this mode the BatteryProtect can be controlled by the VE.Bus BMS. Please note: the BatteryProtect can also be used as a charge interrupter between a battery charger and a Li-ion battery. See connection diagram in the manual.

Super low power consumption

This is important in the case of lithium-ion batteries, especially after a low voltage shutdown.

Overvoltage protection

To prevent damage to sensitive loads due to overvoltage, the load is disconnected as soon as the DC voltage reaches 16V resp. exceeds 32V.

Protected against ignition

No relays, but MOSFET switches and therefore no sparks.

Delayed alarm

The alarm is activated if the battery voltage drops below the preset disconnect level for more than 12 seconds. Therefore, starting the engine does not activate the alarm. The alarm output is an open-collector, short-circuit proof output connected to the negative (minus) rail, max. current 50mA. The alarm output is generally used to activate the buzzer, an LED or relay.

Delayed load disconnection and delayed reconnection

The load is disconnected 90 seconds after the alarm is activated. If the battery voltage rises back to the coupling threshold within this time frame (after the engine has been started, for example), the load is not disconnected. The load is reconnected 30 seconds after the battery voltage rises above the preset reconnection voltage.

Product specifications

Maximum load current: 100A
Peak current (30 seconds): 600A
Operating voltage range: 6-35V/DC
Operating temperature range: Full load: -40°C to +40°C (up to 60% of rated load at 50°C)
IP Value: Electronics: IP67 (moulded), Connections: IP00
Connection: M8
Weight: 0.5Kg
Dimensions (hxwxd): 59x42x115mm

Battery protector is not designed for reverse current of chargers
