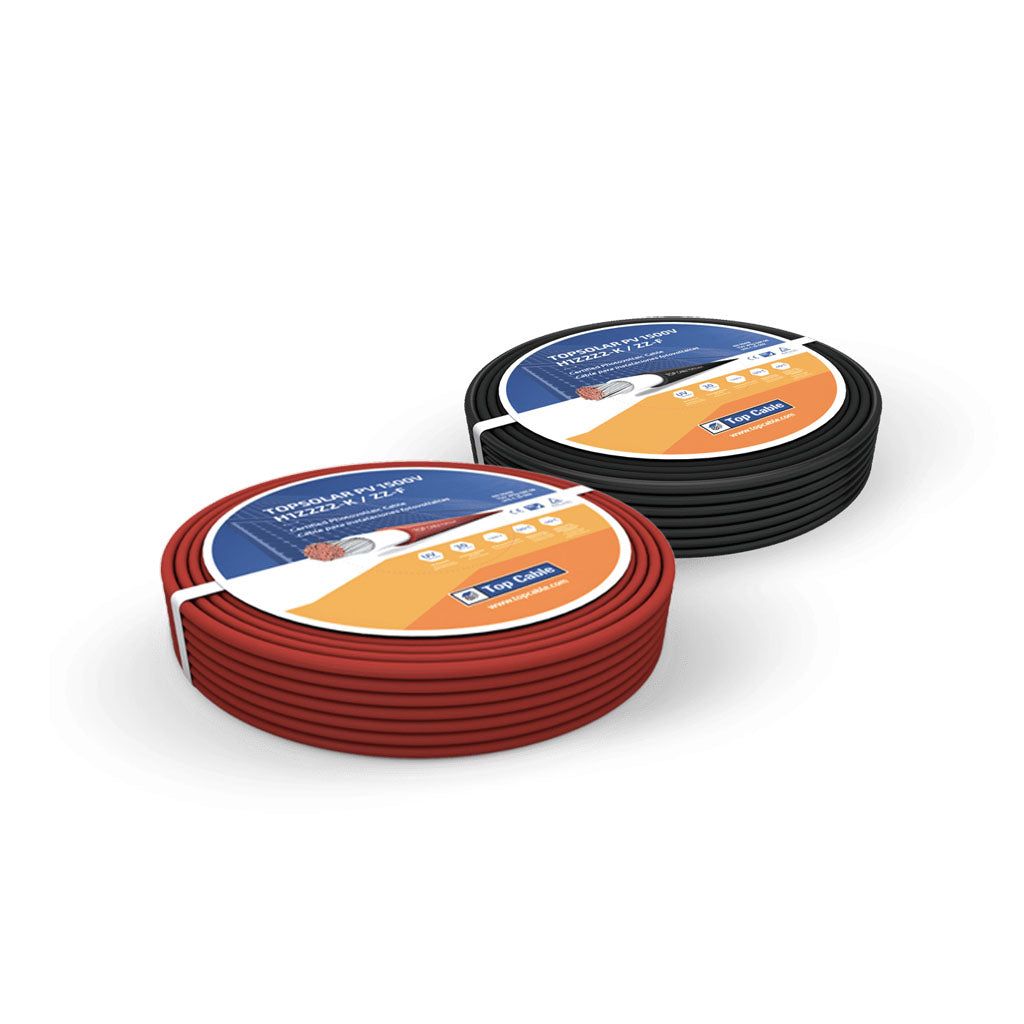

Solar cable 4mm² red
Solar cable 4mm² red
Regular price
€1,99
Regular price
Sale price
€1,99
Unit price
/
per
Op voorraad - morgen verzonden
Gratis bezorging
Snel en veilig betalen
Klanten geven vctrade.nl een 4,9/5
14 dagen retour
Solar cable 4mm² red
This solar cable has been specially developed for use in combination with solar panels. The extremely flexible outer sheath and good weather resistance make this cable indispensable in any PV installation. We recommend using at least 2.5mm2 cable for solar panels of 50 Watts and less. For solar panels above 50 Watts, it is advisable to choose the cable with a thickness of 4mm2, which has less loss.
Please note the price is per meter
Solar cable specifications:
nominal voltage; | 1.8kV DC |
Ambient temperature range: | -40 °C to + 90 ºC |
Service temperature range: | -40 °C to + 120 ºC |
Max short circuit temperature: | 250 °C (5 s) |
Max bending radius | 5x cable Ø |
Max open air flow | 55 amps |
max flow surface | 44 amps |
Voltage drop V/A.km | 14.3 |
outside size: | Ø 6.1 mm |
Weight /km | 68kg |
