Battery monitor 500A SmartShunt - Victron Energy

Product information

Product description

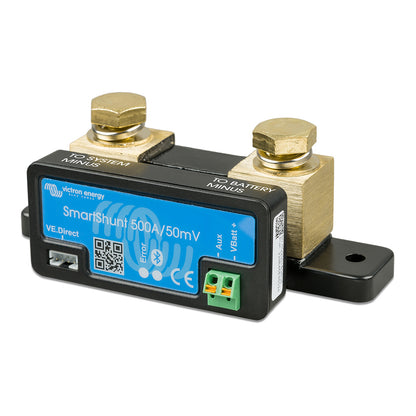

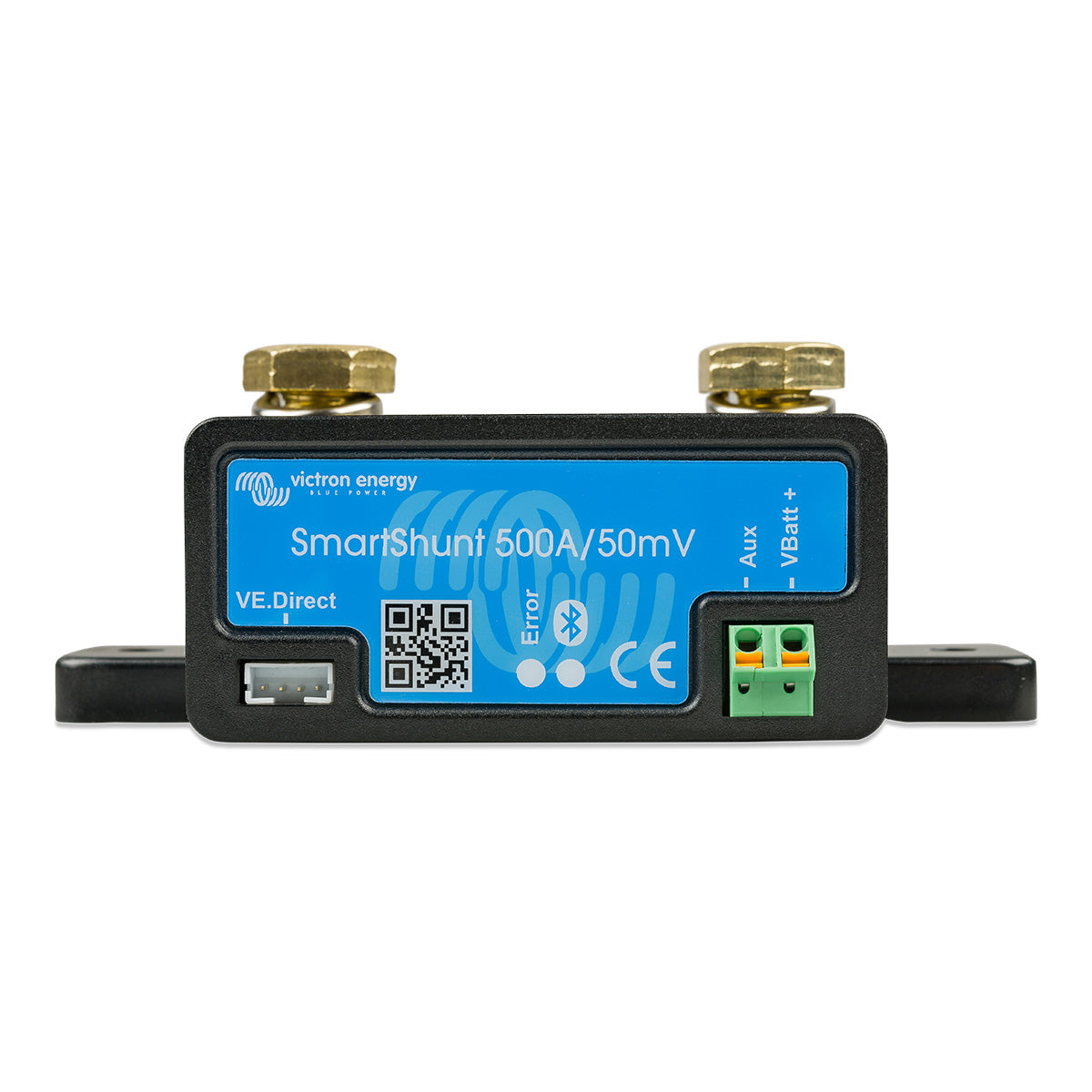

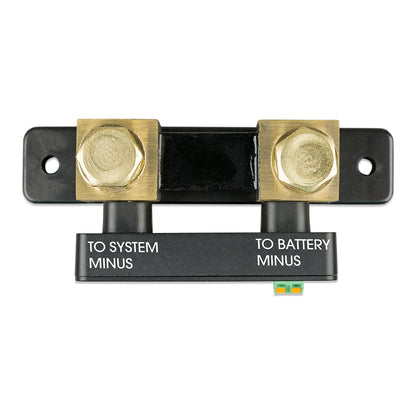

The Smart Battery Shunt. The SmartShunt is an all-in-one battery monitor, just without a screen. Your phone works like the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can easily read all monitored battery parameters such as charge status, duration, historical information and much more.

The SmartShunt can also be connected to and read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.

The SmartShunt is a good alternative to a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is desired.

The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used to: monitor a second battery, for center point control or a temperature sensor.

Characteristics

• Battery voltage, current, power, ampere hours consumed and charging status
• Time remaining at the current discharge rate
• Programmable visual and audible alarm

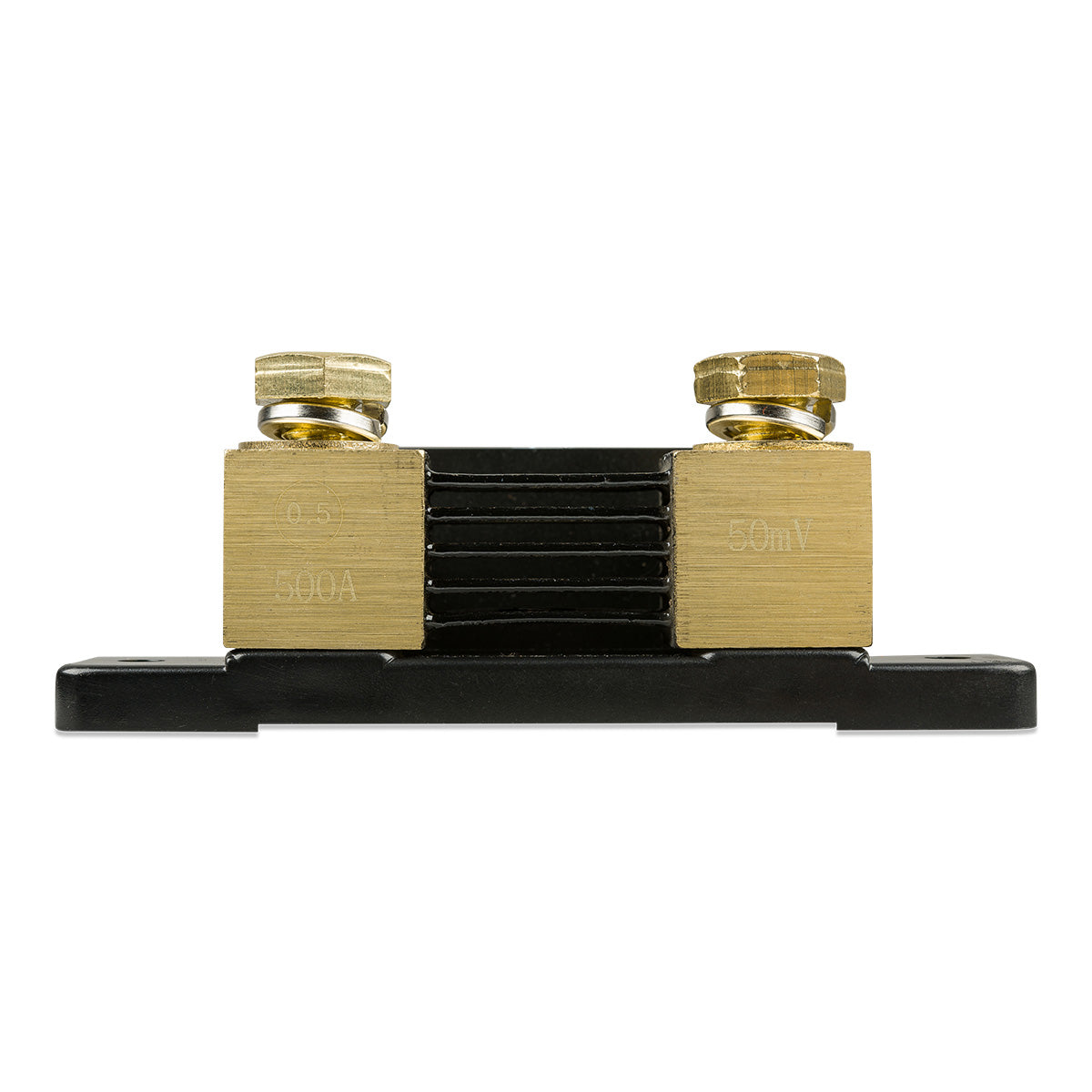

• 500 amp shunt
• Communication via Bluetooth and VE.Direct communication port
• Can store a large number of historical events that can be used to evaluate usage patterns and battery health
• Wide input voltage range: 6.5 – 70V
• High current measurement resolution: 10 mA (0.01A)
• An additional value to measure voltage (from a second battery), temperature or midpoint voltage and the associated alarm and relay settings

Specifications

Dimensions: 46x120x54mm
Weight: 0.5Kg
Max current: 500A
System voltage: 12/24 Volt
Communication: VE-Direct/Bluetooth
Operating temperature: -40°C to +50°C
Protection: IP21
Warranty: 5 years
