Wind generator Silentwind pro 12V MPPT

Product information

Product description

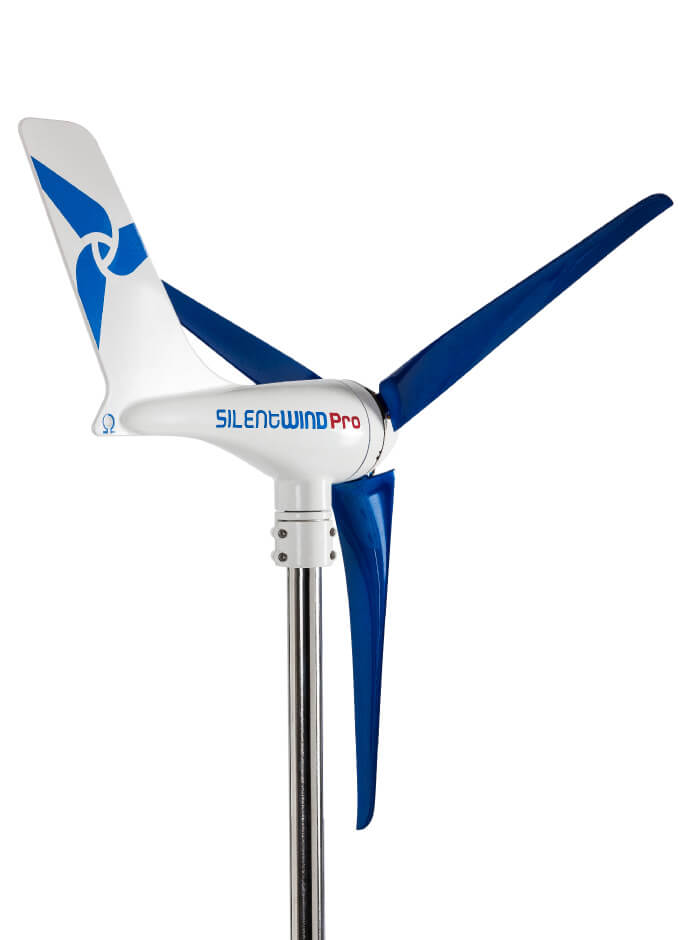

This small, light (6.8 kg), but powerful (420 Watt) wind generator is distinguished by special properties. The unique patented SPB (Silent Power Blades) carbon rotor blades are very strong, light and above all they ensure that the Silentwind is the quietest windmill on the market.

The Silentwind generator is optimized for all wind speeds and comes complete with charge controller with integrated stop switch. In addition to the wind generator, solar panels can also be connected to the Silentwind charge controller and can be fully operated via Bluetooth with the IOS or Android app. The Silentwind generator has a 3-year warranty.

Product specifications

Wind generator specifications

Application : Universal application for low, medium and strong winds
Voltage : Nominal voltage 12V
Power: Nominal power 420 Watts
Start-up : low start-up, 2.2m/s wind speed
Technology: Permanent magnet generator
Design: Aerodynamic design
Housing: Powder-coated aluminum housing
Sound: Low sound
Blades: Hand-laminated, UV-resistant carbon blades, successfully tested according to DIN EN 61400-2 at hurricane speed 122 km/h (5480 rpm, with almost the speed of sound at the blade tips).
Controller: External hybrid boost charge controller for wind and solar energy with multifunctional display and integrated electronic/manual stop switch
Maintenance: Durable and low-maintenance

Charge controller specifications

System voltage : 12VDC
Total capacity: Wind and solar energy generation capacity: wind (max. 40A) solar energy (max. 20A)
Maximum input wind generator: Max. wind generator power consumption: 600W
Maximum input solar panels : Max. solar panel power consumption: 300W
Battery type: voltage adjustable for battery types: Gel, AGM, Acid and Lithium
Display: LCD display with all relevant working data: W, A, V, Ah
Maximum power tracking: Wind turbine MPPT point adjustable.
Brake system: Integrated electronic brake – load limiter and storm brake.
Load output: Eight load output settings
Cable connection: screw terminals
Connection: Bluetooth
