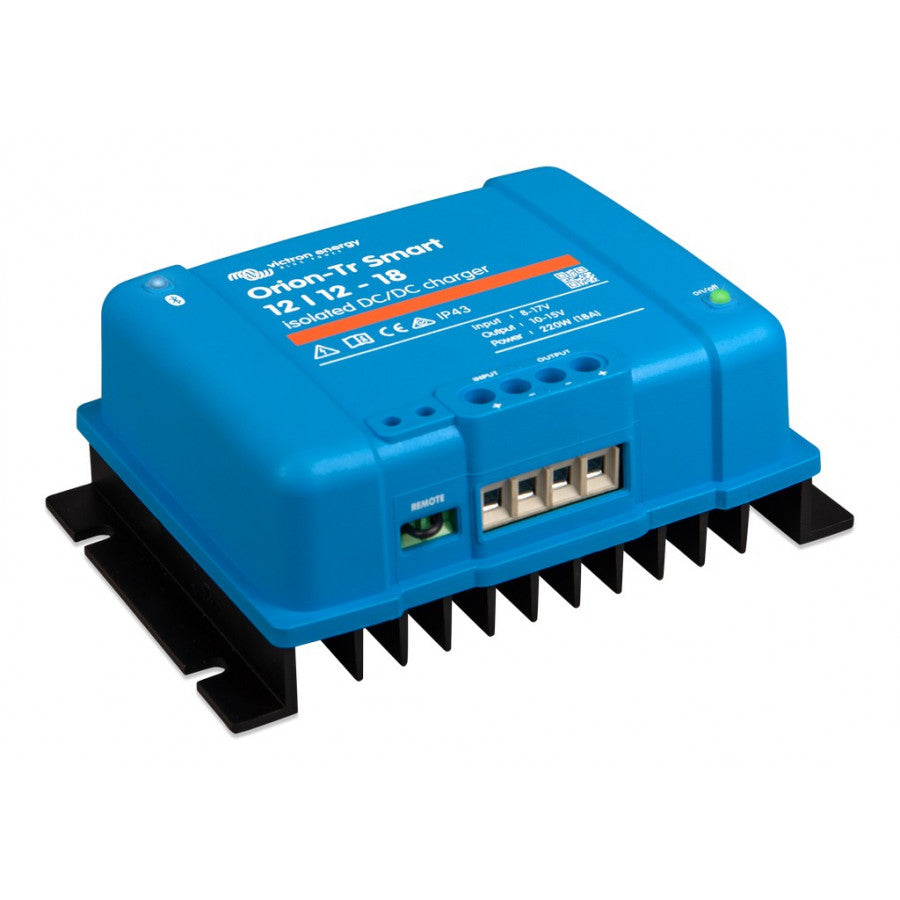

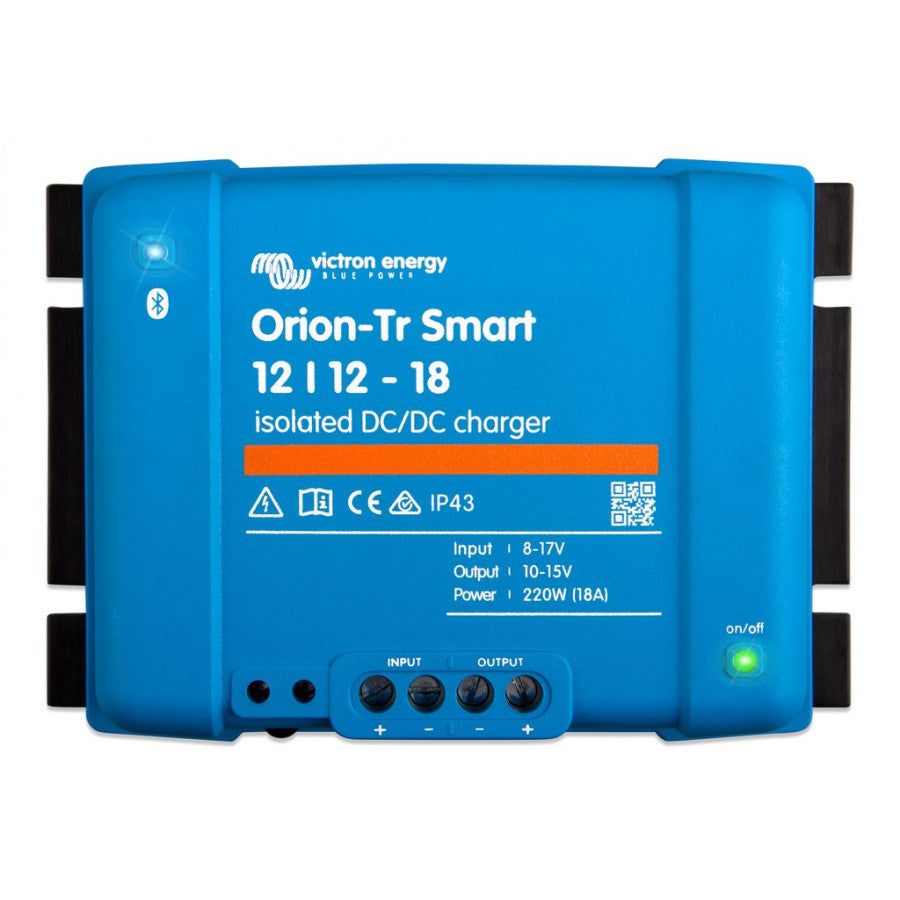

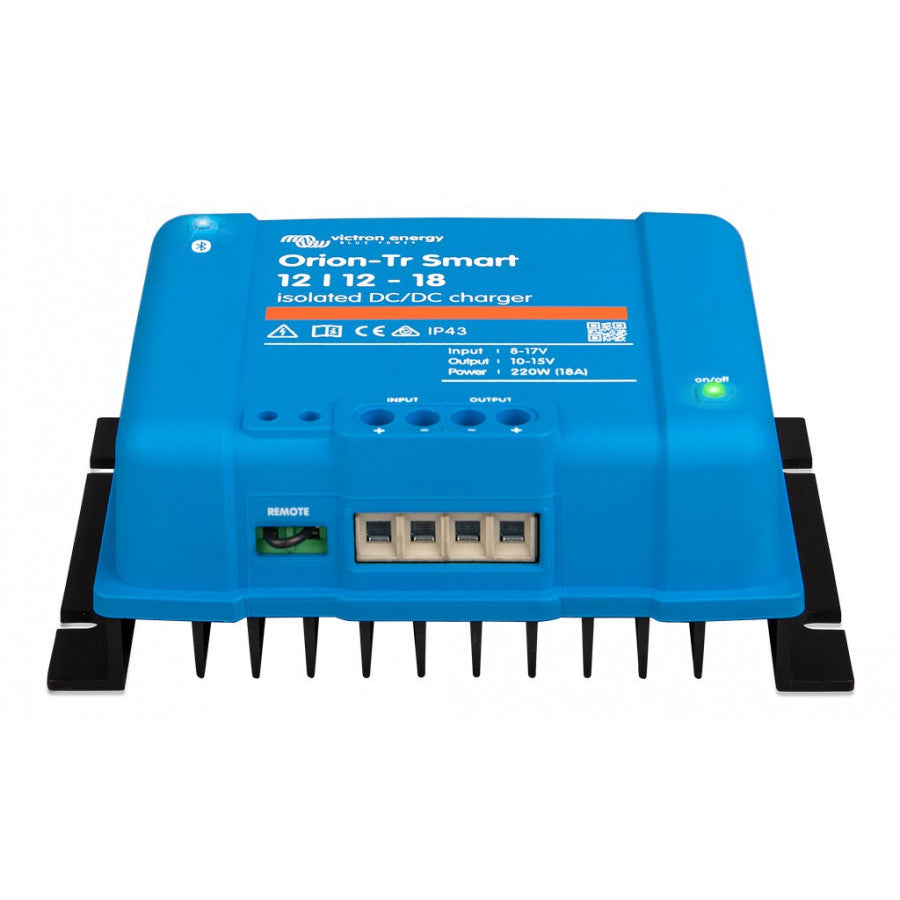

Orion-Tr Smart battery chargers isolated 12/12-18 220 W

Isolated Orion-Tr Smart DC-DC battery charger

The Orion-Tr Smart DC-DC Battery Charger is a professional three-step DC to DC battery charger with built-in Bluetooth.

For use in dual battery systems in vehicles or boats where the (smart) alternator and the starter battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and controlled remotely via the remote on/off switch. In addition, the device is equipped with an engine operation detection mechanism.

The Orion-Tr Smart battery charger can be used in 12V and 24V systems and is suitable for both lead-acid and lithium batteries. Models up to 400 W are available and an unlimited number of units can be connected in parallel to increase the output voltage.

Suitable for high temperatures up to 55°C with full output power up to 40°C.

Specifications:

• Input voltage range: 8-17V
• Nominal output voltage: 12.2V
• Output voltage adjustment range: 10-15V
• Output power current: 18A
• Output power: 220W
• Operating temperature range: -20 to +55°C
• Humidity Max. 95% non-condensing
• DC connection: Screw terminals
• Maximum cable diameter: 16 mm² (AWG6)
• Weight: 1.3kg (3lb)
