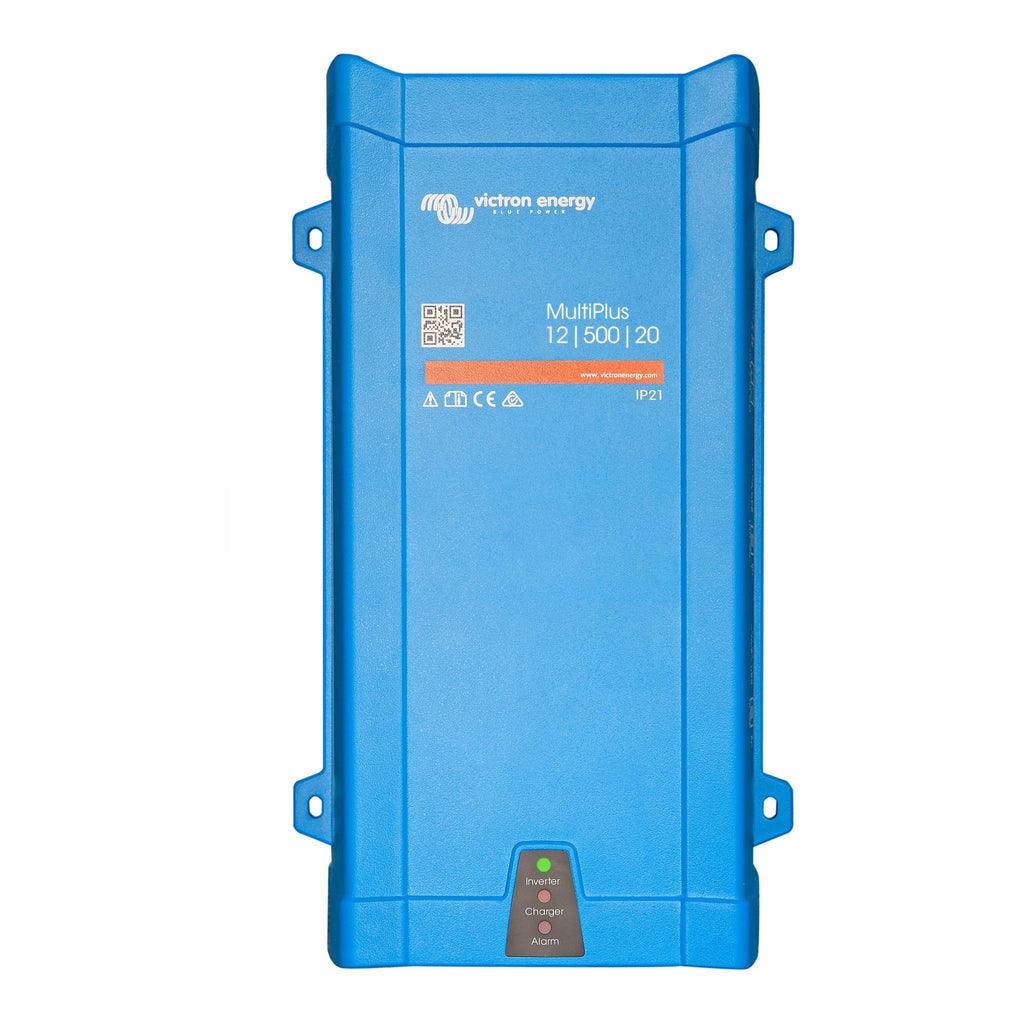

Inverter/battery charger 500W 12/230V Multiplus - Victron energy

Product information

Product description

Proven reliability. The full bridge plus toroidal transformer topology has proven itself to be very reliable for many years. The inverter is short-circuit resistant and protects against overheating, whether this occurs as a result of overload or high ambient temperature.

High start-up power

Required to start loads with high inrush current, such as voltage converters for LED lamps, halogen lamps or power tools.

Search Mode

When the 'search mode' is enabled, the power consumption of the inverter at no load is reduced by approximately 70%. The 'search mode' means that the Multi is switched off when there is no load or when it is very low. The Multi will switch on briefly every 2 seconds. If the output current exceeds a set level, the inverter continues to operate. If not, the inverter switches off again.

Programmable relay

The programmable relay is set as an alarm relay by default, which means that the relay is de-energized in the event of an alarm or a pre-alarm (inverter almost too hot, ripple voltage on the input almost too high, battery voltage almost too low).

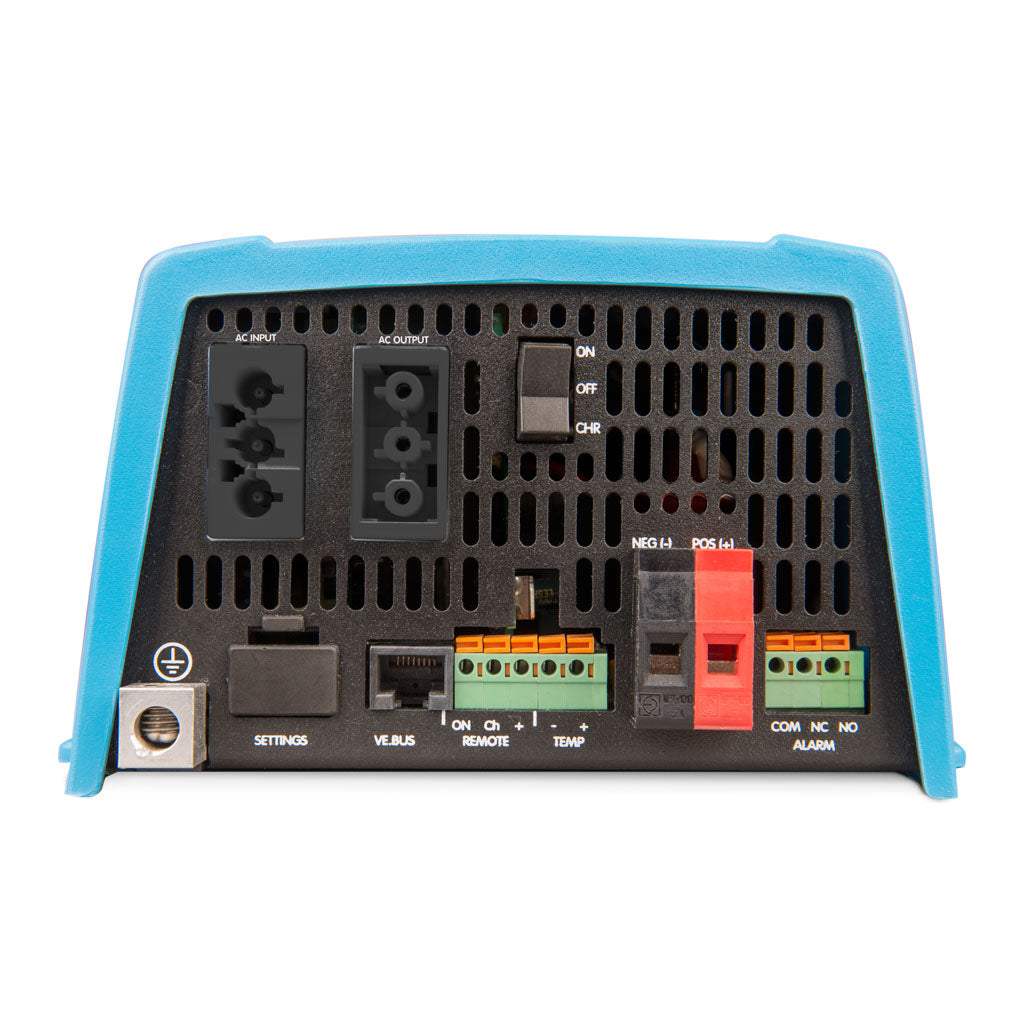

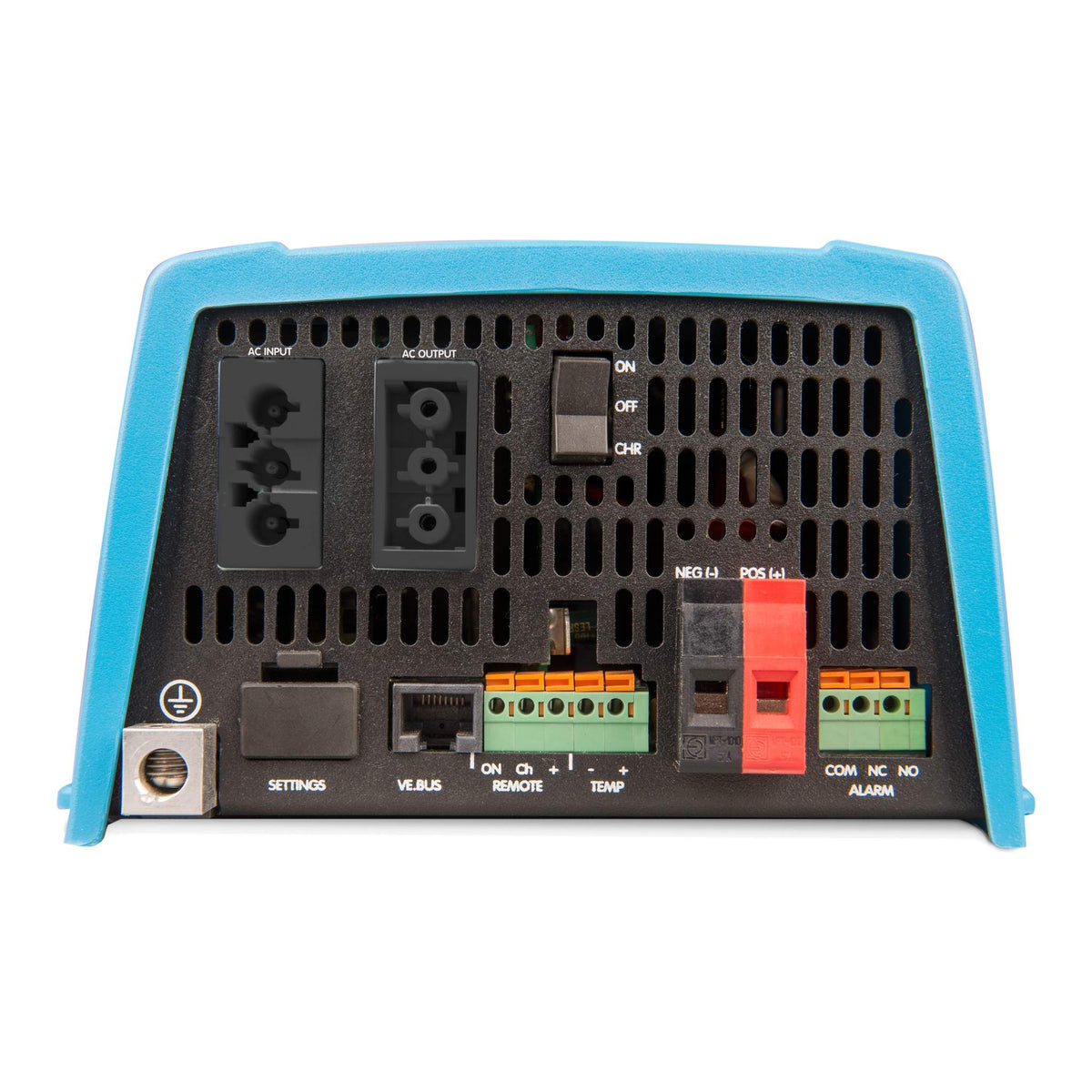

Remote on/off/charger on

Three-pin plug.

Product specifications

Model: Multiplus 12/500/20
Type: Pure sinus
Continuous power at 25°C: 500VA
Continuous power at 25°C / 40°C: 430 / 400 Watt
Peak power: 900 Watts
AC voltage: 230V/AC
System voltage: 12 Volts
Battery charging current: 20A
Undervoltage protection: 9.3 Volt (adjustable)
No-load power: 6 Watts
Operating temperature: -40°C to +65°C
Connection terminals: Screw terminals
Maximum cable cross-section: 16mm2
Standard AC outputs: 230V: G-ST18i connector
Weight: 4.4kg
Dimensions: 311x182x100mm
