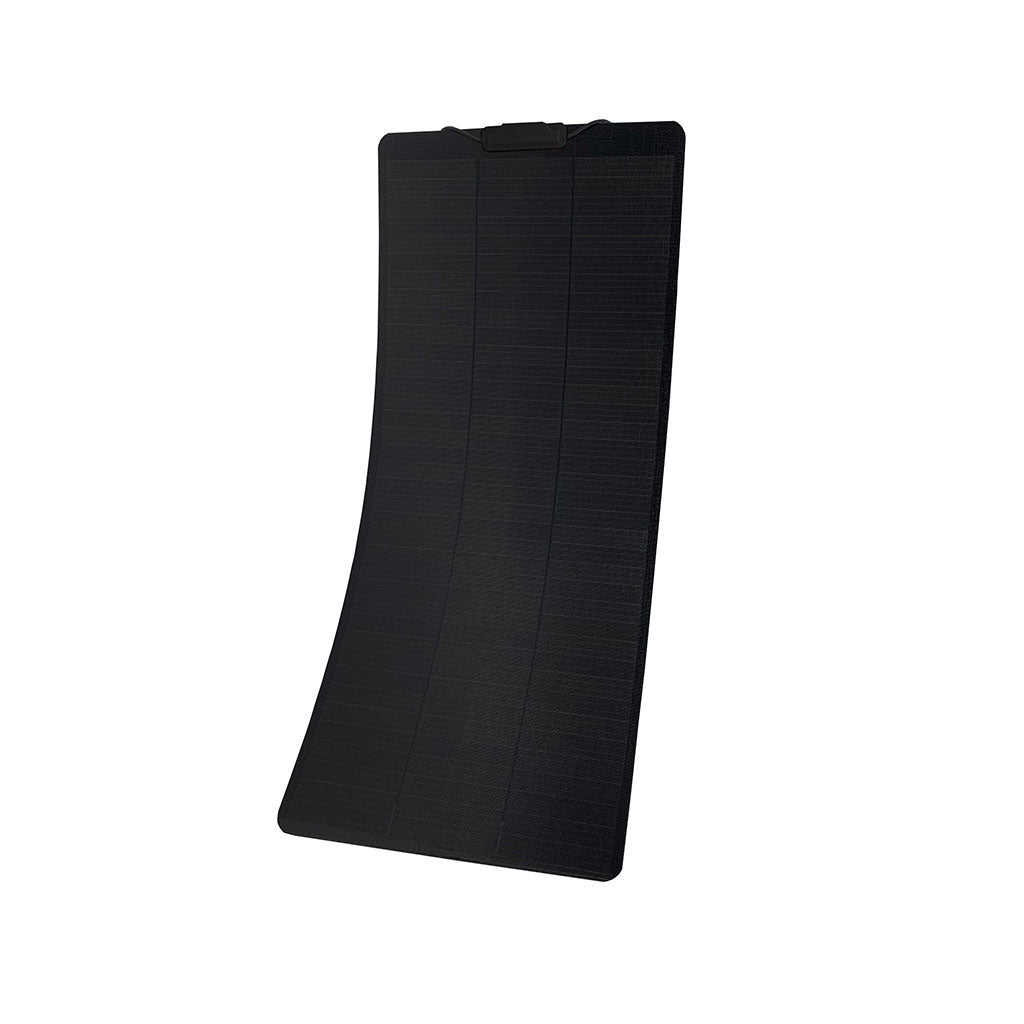

Flexible solar panel 100 Watt monocrystalline ETFE

Shingled flexible solar panel 100 Watt

Flexible solar panels are flexible and light, making them ideal for applications where weight is an issue such as a plastic roof on a camper or when the surface is not flat as may be the case on a boat or yacht. This flexible panel has a rhombus pattern, which ensures that even more light falls on the cells, which contributes to the high power. The panels are equipped with 50 centimeter cable with standard solar connectors.

The latest innovation in flexible solar panels

The shingled flexible solar panels are the latest innovation in flexible solar panels. With this type of solar panel, the solar cells are divided into 6 equal parts and placed on top of each other, like roof tiles. Shingled flexible solar panels are 40% less sensitive to micro-cuts, which are small cracks in the solar cells, and are 15-30% more efficient when the panel is partially in the shade. The image below shows the shingled solar panel on the left and the traditional way on the right.

An ETFE top layer that will last for years

It is known that flexible solar panels have a shorter lifespan than glass panels. This is because flexible panels use a plastic layer instead of glass to cover the cells and plastic ages faster than glass. To make the lifespan as long as possible, we opted for a top layer of ETFE (ethylene-tetrafluoroethylene copolymer) when designing these panels. This plastic has the longest lifespan of all plastics with the least aging, so you can enjoy your own generated energy for years to come.

Specifications solar panel flexible 100 Watt shingled - ETFE

• Dimensions: 1050x520x2mm
• Weight: 2.1kg
• Cell type: Monocrystalline
• Number of cells: N/A
• Max wattage (Pmax): 100 Watts
• Max voltage (Vmpp): 18.15 Volt
• Max current (Imp): 5.51 Amps
• No-load voltage: 21.45 Volts
• Short circuit current: 5.84 amps
• Max system voltage: 100 Volts
• Operating temperature: -20°C to +65°C
• Power warranty: 2 years 95% + 5 years 85% power delivery
• Warranty: 2 years
